API 5LC CRA Clad Pipe vs Solid CRA Pipe: Cost and Performance Comparison

The selection of pipeline materials has always been at the core of engineering design in global oil and gas development, integrated refining, and deep-sea energy projects. In the face of high H₂S acidic gas fields, high concentration of chloride ion seawater, and high temperature and high pressure conditions, corrosion-resistant alloys (CRA) have become a necessary option to ensure long-term operation of the equipment. However, EPC contractors often face a dilemma in actual procurement: should they choose solid CRA pipes or CRA composite pipes under the API 5LC standard? This decision not only affects the CAPEX of the project but also directly relates to the operational costs and security risks for the next 20 years.

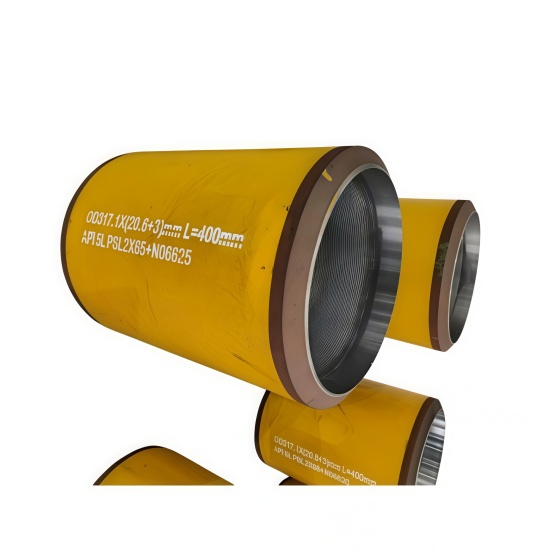

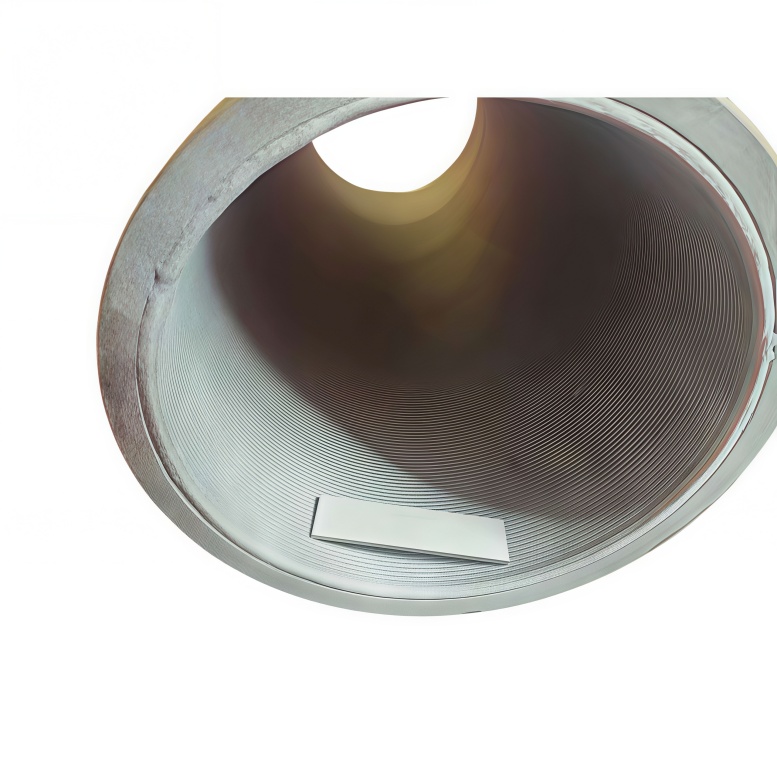

From a materials engineering perspective, solid CRA pipes (such as Inconel 625, Incoloy 825 integral pipes) can indeed provide "full wall thickness corrosion resistance" performance, but this design is often over-configured in most operating conditions. In conventional transportation pipelines, corrosion only occurs on the inner surface in contact with the medium, and expensive nickel-based alloys are not required in the central area of the pipe wall. In contrast, the API 5LC Clad Pipe welding pipe adopts a bimetallic structure of "carbon steel base bearing+corrosion-resistant alloy coating protection", and the coating thickness only needs to be 3-5 mm to meet the requirements of API 5LC and NACE MR0175 standards. This design reduces material costs by 40% -70% compared to solid pipes, while ensuring the structural stability of the coating under high pressures above 15 MPa through metallurgical bonding, perfectly solving the engineering paradox of "strength and corrosion resistance cannot be achieved simultaneously".

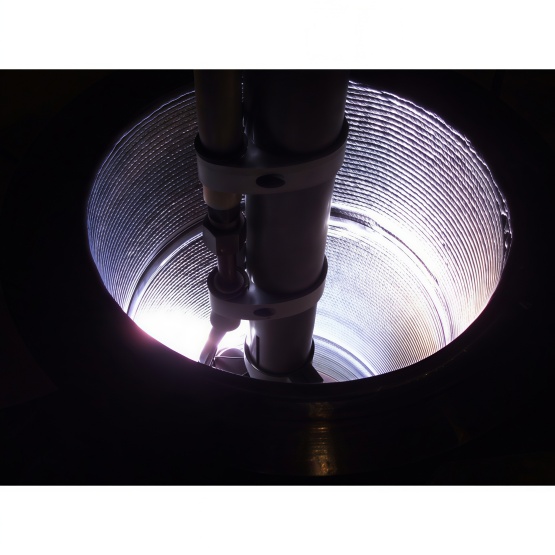

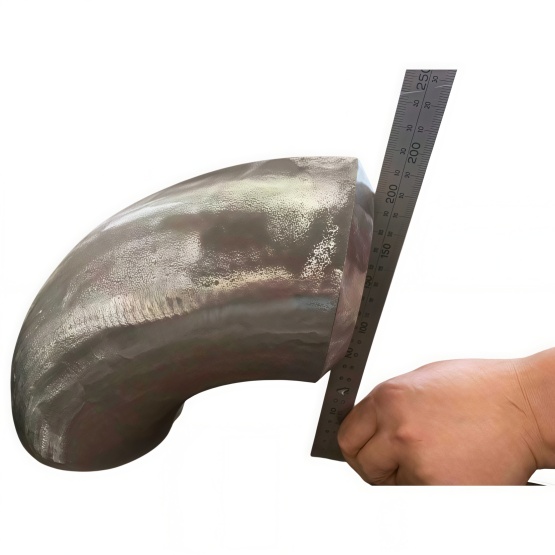

At the project execution level, the supply chain risk of solid CRA pipes is much higher than that of composite pipes. The global production capacity of nickel-based alloys is limited, and the delivery time for large-diameter thick-walled solid pipes is usually 6-9 months, and the price is greatly affected by fluctuations in commodity prices. This is an uncontrollable factor for EPC projects with tight schedules. CRA composite pipes fully utilize the advantages of the mature carbon steel pipe supply chain, significantly shortening the delivery cycle. In addition, for the stress concentration areas in the pipeline system, PESCO has developed the Clad Bends welding elbow through 8-axis linkage hot wire TIG welding technology, which achieves uniform coating distribution on the easily eroded parts such as the outer arc side of the elbow, effectively eliminating the risk of wall thickness reduction in traditional push-formed elbows.

The integrity of the pipeline system depends not only on the straight pipes but also on the collaborative protection ability of the fittings and flanges. In the compact spatial layout of offshore platforms, flange connection points are high-risk areas for leaks. Traditional solid CRA flanges are not only expensive but also pose a risk of casting defects in the manufacturing of large-sized high-pressure flanges (Class 900 and above). PESCO's cladding flanges adopt the process of "forging steel substrate+sealing surface cladding", which not only retains the high-strength characteristics of carbon steel flanges but also forms a dense corrosion-resistant barrier at the contact medium area. This solution eliminates the risk of coating peeling that may occur in mechanical lining flanges under high temperature and pressure, and is particularly suitable for working environments with limited space and difficult maintenance on offshore platforms.

From the perspective of life cycle cost (LCC), the decision logic for choosing CRA composite pipes instead of solid pipes is clearer. Although the initial purchase price difference between the two is narrowing, there is a huge cost difference during the operation and maintenance phase. Once local corrosion occurs in solid pipes, it is usually necessary to replace the entire section, while composite pipes only require local repair of the damaged coating. The cladding elbows and matching fittings provided by PESCO have undergone strict -196 ℃ low-temperature impact and intergranular corrosion testing to ensure zero-leakage operation within a 20-year design life. For EPC contractors, this means lower spare parts inventory pressure, less unplanned downtime, and higher owner satisfaction in the later stages of project operation and maintenance handover (LSTK).

With the implementation of the global carbon tariff policy in 2026, the carbon emission factor of pipeline materials has become an important scoring item for EPC bidding. CRA composite pipes significantly reduce the carbon footprint in the production process by reducing the use of precious metals. PESCO's technical team can assist clients in calculating the implied carbon emissions of materials and provide traceability documents that comply with EU CBAM regulations. If your refining expansion, deep-sea development, or LNG project is facing severe anti-corrosion challenges, please visit https://www.petrolsteel.com. Obtain customized solutions. We will provide full process technical support from material selection calculation to welding process evaluation based on specific medium composition, temperature pressure curve, and design specifications, to help you achieve the optimal configuration of the entire life cycle cost while ensuring the intrinsic safety of the project.
