Why CRA Clad Pipe Is Essential for LNG and Offshore Energy Projects

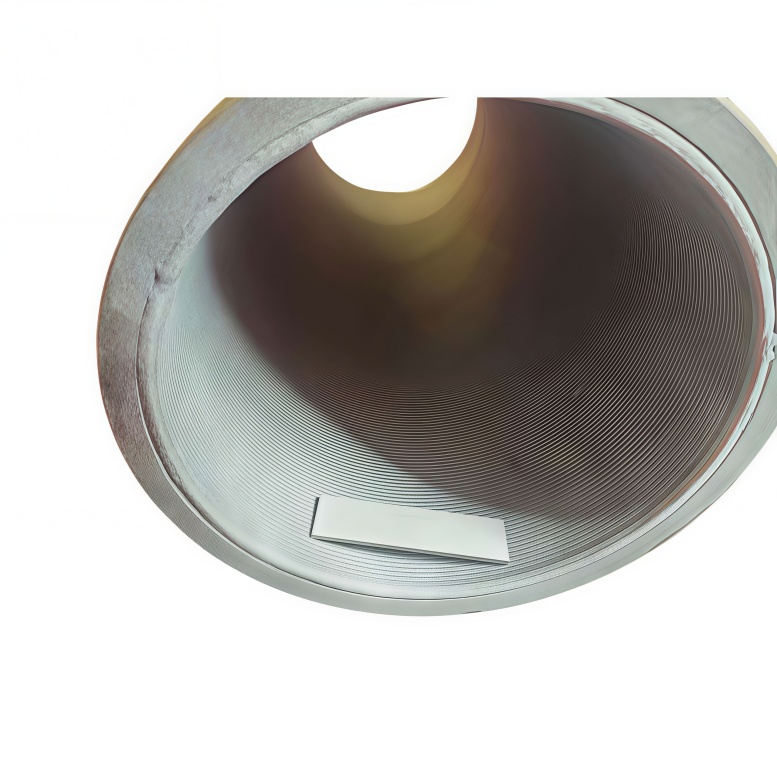

Against the backdrop of accelerating the global energy structure towards low-carbon transformation, the expansion of liquefied natural gas (LNG) receiving stations and deep-sea oil and gas development are becoming key directions for capital expenditure. This type of project generally faces the composite challenge of "ultra-low temperature+high corrosion+high pressure": LNG transportation temperature is as low as -162 ℃, offshore platform pipelines are immersed in high-concentration chloride ion seawater for a long time, and acidic gas fields are accompanied by H ₂ S/CO ₂ corrosion environment. Traditional single-material pipelines either cannot balance low-temperature toughness and corrosion resistance or have high maintenance costs throughout their entire lifecycle. CRA Corrosion Resistant Alloy Weld Overlay Pipe is becoming the preferred pipe solution for international energy giants such as Shell and BP in new LNG and offshore projects due to its bimetallic structure design of "carbon steel base bearing+corrosion-resistant alloy coating protection". It reconstructs the pipeline reliability standards under extreme working conditions from the material layer surface.

In the LNG industry chain, the value of CRA welded pipes is first reflected in their dual adaptability to low temperature and corrosion. The BOG (evaporated gas) recovery pipeline of the LNG receiving station needs to fluctuate frequently between -104 ℃ and room temperature. Although traditional 304L stainless steel can meet the low temperature requirements, it is prone to stress corrosion cracking in marine atmospheric environments containing trace amounts of Cl ⁻; The material cost of the all nickel-based alloy scheme is 5-8 times higher than that of carbon steel. By using stacked welded pipe API 5LC Clad Pipe (substrate API 5L X70+cladding Incoloy 825) （ https://www.petrolsteel.com/cra-clad-pipe-p.html ), the corrosion resistance equivalent PREN value can be increased to 45 or above while ensuring a low-temperature impact energy of -196 ℃ ≥ 100J, fully resisting the corrosion risk in the seawater splash zone. PESCO provided a stack-welding pipe solution for an LNG receiving station in Southeast Asia. By optimizing the gradient design of the coating thickness (3mm for straight pipe sections and 5mm for elbow sections), the problem of low-temperature shrinkage and thermal stress concentration was successfully solved. In the three years since the project was put into operation, there has been no unplanned shutdown due to pipe failure.

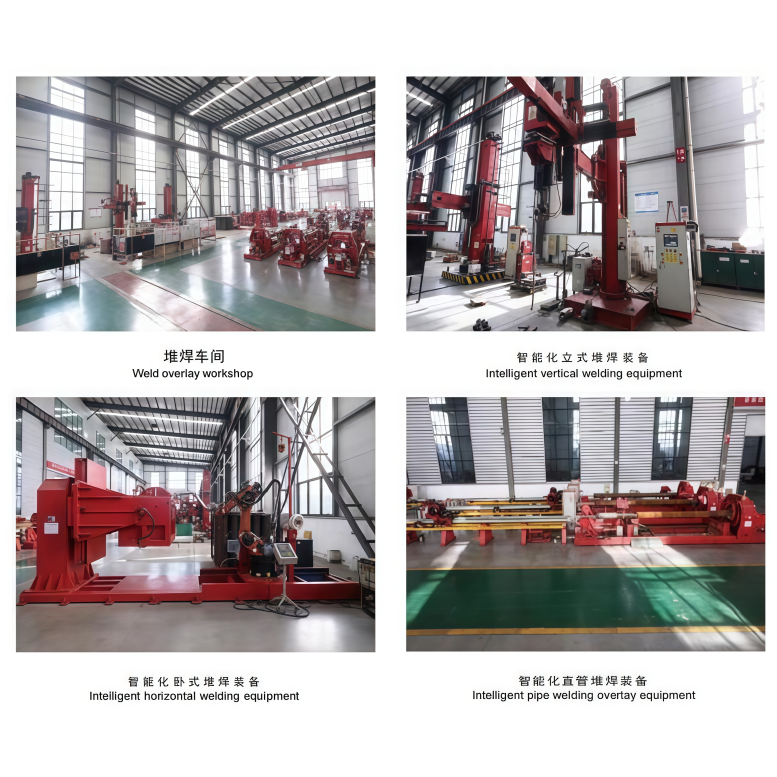

The unique demands of offshore energy projects further highlight the technical advantages of CRA-clad pipes. Riser systems for deep-sea drilling platforms must withstand internal pressures exceeding 30 MPa while also enduring cyclic fatigue stresses caused by wave loads; furthermore, if the external anti-corrosion coating of a subsea pipeline is breached, rapid seawater ingress can trigger widespread corrosion. PESCO's clad bends ( https://www.petrolsteel.com/PESCO-Clad-Bends-p.html ) are manufactured using an 8-axis coordinated hot-wire TIG overlay process, achieving a cladding thickness uniformity deviation of ≤±0.15 mm—even in high-erosion areas like the outer arc of the bend—and a metallurgical bond strength exceeding 480 MPa, far surpassing the 210 MPa requirement of the API 5LD standard. In a deep-water oilfield project in the Middle East, replacing traditional solid alloy bends with these clad bends reduced the unit cost by 62%; the bends also successfully passed 1 million fatigue cycles, fully meeting the 20-year design life requirement.

The reliability of an integrated piping system depends on the coordinated protection of its components. Space within the pipe racks of offshore platforms is limited, and flange connections are particularly prone to corrosion and leakage; standard overlay-welded flanges often suffer from porosity defects in the sealing surface coating, while mechanically lined flanges risk coating delamination during thermal cycling. PESCO's cladding flanges ( https://www.petrolsteel.com/PESCO-Cladding-Flanges-p.html ) utilize a process combining a forged base, automated overlay welding, and integral machining. By forming the sealing surface and inner-diameter coating as a single, unified unit, the design eliminates the interfacial weak points associated with traditional manufacturing methods. With hardness strictly controlled at HRC ≤ 22, the product fully complies with NACE MR0175/ISO 15156 standards for sour service environments. It has been successfully deployed in the hydrogen transport piping system of an offshore wind-to-hydrogen project in the North Sea, maintaining zero-leakage operation under a hydrogen partial pressure of 10 MPa.

From the perspective of EPC project execution, the core competitiveness of CRA weld-overlay pipe solutions lies in the optimization of the total cost of ownership (TCO). Pipeline maintenance costs for offshore projects are three to five times higher than those onshore, with the daily cost of a single subsea repair operation exceeding $500,000. PESCO offers an integrated supply solution covering a full range of components—such as clad elbows, clad reducers, and clad caps ( https://www.petrolsteel.com/Cladding-Pipe-Fittings-p.html )—utilizing consistent cladding materials and welding processes to ensure uniform corrosion resistance across the entire pipeline. Supported by an independent CNAS-certified testing center, every product batch comes with reports covering 12 types of inspections—including chemical composition analysis, ultrasonic testing, and intergranular corrosion testing—fully meeting the inspection requirements of third-party agencies like SGS and BV. This integrated "product + quality control + service" model helped a floating LNG project in South America reduce its material acceptance period by 28 days.

As global carbon tariff policies are progressively implemented leading up to 2026, the low-carbon attributes of energy projects have become a key scoring criterion in EPC tenders. By reducing the consumption of precious metals, CRA-clad/weld-overlay pipes cut carbon emissions associated with nickel mining by approximately 60% per ton of piping; additionally, their lightweight design alleviates the load-bearing requirements of offshore platforms and reduces energy consumption during installation. PESCO's technical team assists clients with carbon footprint calculations and provides material traceability documentation that complies with the EU’s Carbon Border Adjustment Mechanism (CBAM) regulations.

If your LNG terminal expansion, deep-sea oil and gas development, or offshore renewable energy project is facing challenges regarding pipeline material selection, please visit https://www.petrolsteel.com or email sales@petrolsteel.com to obtain the best quotation. We will help you optimize total lifecycle costs while ensuring the safety and reliability of your project.
