How to Select the Right CRA Clad Pipe Material for Offshore Pipeline Projects

The offshore pipeline project has long faced one of the world's worst corrosion environments: high concentration chloride ion seawater, deep-sea low temperature and high pressure, coexistence of acidic gases (H₂S/CO₂), and periodic fatigue stress caused by wave loads. Under such working conditions, the selection of pipeline materials directly determines the asset life and operating costs of the entire oil and gas development project. For EPC general contractors, choosing corrosion-resistant alloy (CRA) composite pipes is not only a technical issue but also a strategic decision for optimizing life cycle cost (LCC). Incorrect material selection may lead to pitting and perforation after only 3-5 years of production, while a scientific material combination can ensure stable operation of the device for more than 20 years.

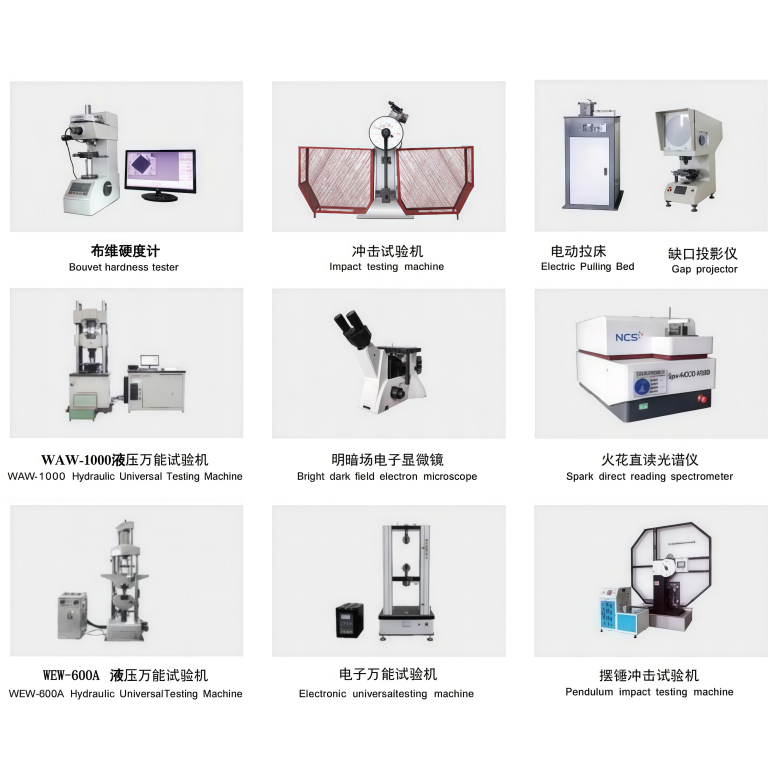

The first step is to accurately define the corrosive environment and service conditions. The corrosion mechanism of offshore projects is much more complex than on land: surface seawater temperature is high, dissolved oxygen is sufficient, and the corrosion rate is fast; Deep sea areas have high pressure, temperatures close to 0 ℃, and there is a risk of microbial corrosion; The produced fluid from wellhead platforms often contains associated H ₂ S and CO ₂, forming an acidic corrosive environment. Different grades of CRA coating materials should be selected for different corrosion zones. For example, in seawater injection pipelines with extremely high concentrations of Cl ⁻, super duplex steel 2507 or Inconel 625 coating should be selected; In moderately corroded water pipelines, 316L stainless steel coating can meet the requirements. PESCO's stack-welded pipe API 5LC Clad Pipe offers a full range of cladding options from 304L to nickel-based alloys, and each batch of products undergoes pitting potential (PREN value) testing in an independent CNAS laboratory to ensure the material's corrosion resistance margin under specific operating conditions.

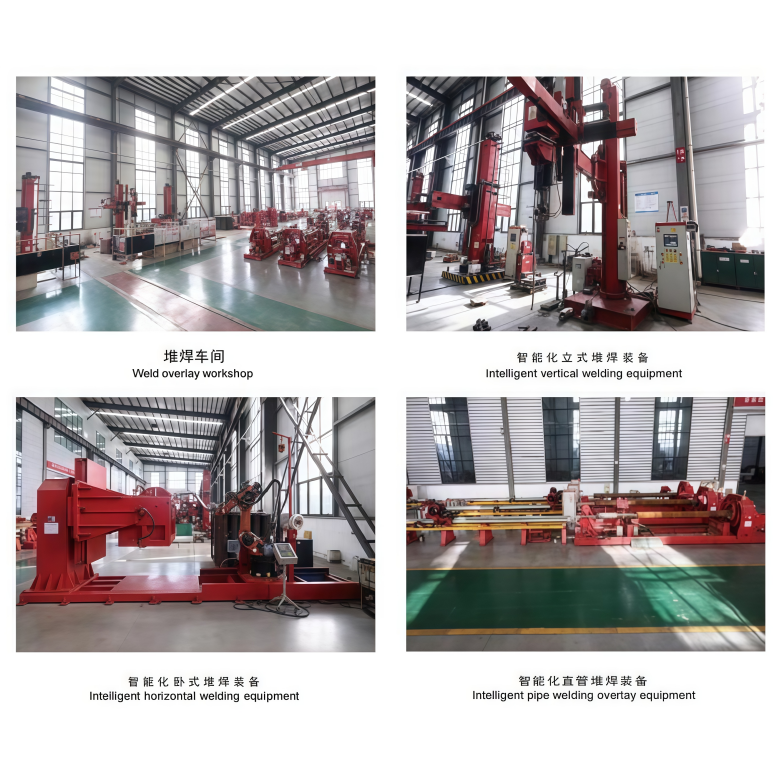

The second step is to evaluate the structural strength and the reliability of the cladding bonding. Offshore pipelines not only need to be corrosion-resistant but also withstand extremely high circumferential stress and axial tensile force. Especially in deepwater riser systems, pipelines need to withstand dynamic loads from ocean currents and floating bodies. This requires CRA composite pipes to have excellent metallurgical bonding strength to prevent coating delamination under high pressure. Traditional mechanical-lined pipes are prone to delamination under thermal cycling, while cladding elbows using explosive composite or automatic cladding processes can achieve metallurgical bonding between the base and cladding layers, with a bonding strength typically exceeding 450MPa. PESCO relies on an 8-axis linkage welding equipment to ensure that the thickness uniformity deviation of the coating on easily eroded parts such as the outer arc side of the elbow is controlled within ± 0.15mm, effectively resisting the dual tests of medium erosion and stress corrosion.

The third step is to pay attention to the compatibility and sealing integrity of the piping system. In the compact spatial layout of offshore platforms, flange connection points are high-risk areas for leaks. If high-performance composite pipes are used for straight pipes and mismatched materials are used for elbows, tees, or flanges, electrochemical corrosion cells will form, accelerating local failure. Therefore, EPC purchasers must require suppliers to provide a full range of supporting pipe fittings. PESCO's cladding flanges use the "forging substrate+sealing surface cladding" process to ensure the integrated formation of the flange sealing surface and inner diameter coating, eliminating the risk of interface separation of mechanical lining flanges under high-pressure thermal cycling. This systematic anti-corrosion design is the key to ensuring the "zero leakage" operation of offshore pipelines.

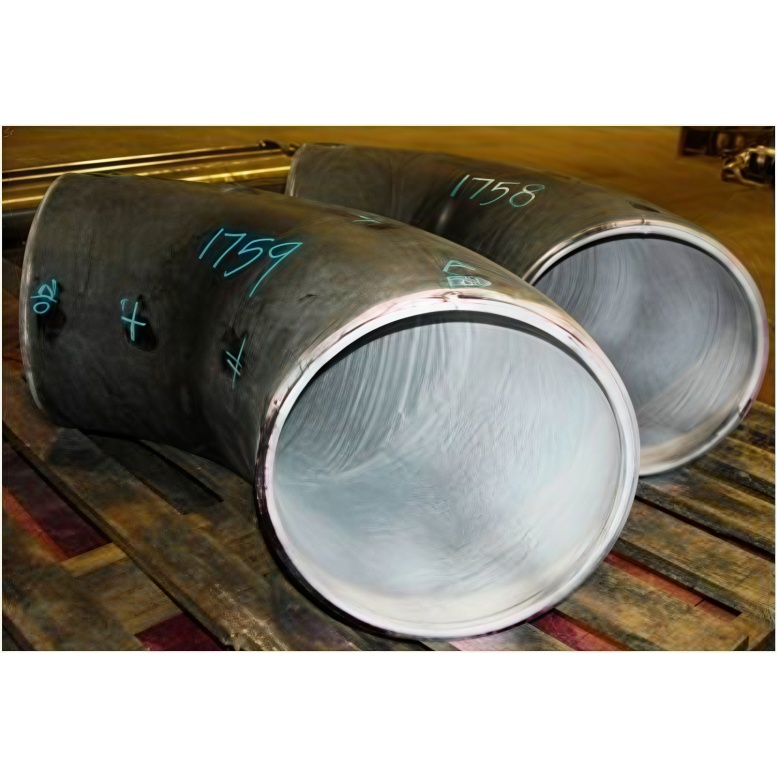

The fourth step is to consider the traceability of manufacturing standards and third-party certification. The quality traceability requirements for materials in offshore projects are extremely strict, and must comply with NACE MR0175/ISO 15156 acidic environment standards and pass witness inspections by third-party organizations such as DNV, SGS, and BV. During procurement, the focus should be on verifying whether the supplier has the ability to issue EN 10204 3.2 certificates and whether they have a comprehensive welding procedure qualification (WPS/PQR). PESCO's weld overlay bends, Clad Bends, are manufactured strictly in accordance with API 5LD and ASME B16.9 standards. All raw material furnace numbers, welding parameters, and heat treatment records can be digitally traced, fully meeting the supplier pre-qualification requirements of world-class oil companies.

The fifth step is to balance the delivery cycle with the full lifecycle cost. The delivery time for solid nickel-based alloy pipes is usually as long as 6-9 months and is expensive, while CRA composite pipes significantly shorten the delivery cycle and reduce CAPEX by utilizing a mature carbon steel supply chain. From the perspective of LCC, although the initial investment of composite pipes is slightly higher than that of ordinary carbon steel, its comprehensive cost advantage can be demonstrated in the third year of project operation by extending the maintenance interval (from 2 years to 5-6 years) and reducing undERWater maintenance operations (with a single cost exceeding 500000 US dollars). PESCO can provide detailed cost comparison analysis reports for EPC customers, quantifying the maintenance cost differences of different material selection schemes over the next 20 years of operation.

With the implementation of the global carbon tariff policy in 2026, new requirements have been put forward for the low-carbon properties of materials in offshore new energy projects, such as hydrogen production from offshore wind power and carbon capture and storage (CCS). CRA composite pipes significantly reduce the embodied carbon emissions of products by reducing the amount of precious metals used, in compliance with EU CBAM regulations. If your offshore pipeline project is facing material selection challenges, please visit https://www.petrolsteel.com
Obtain customized technical solutions. We will provide full process technical support from material selection calculations to on-site welding guidance based on specific medium composition, temperature, and pressure curves, and design specifications, to help you achieve the optimal configuration of the entire lifecycle cost while ensuring the intrinsic safety of the project.
