Description

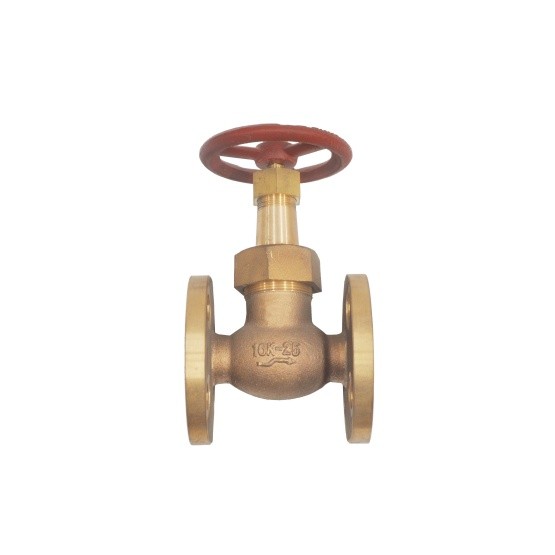

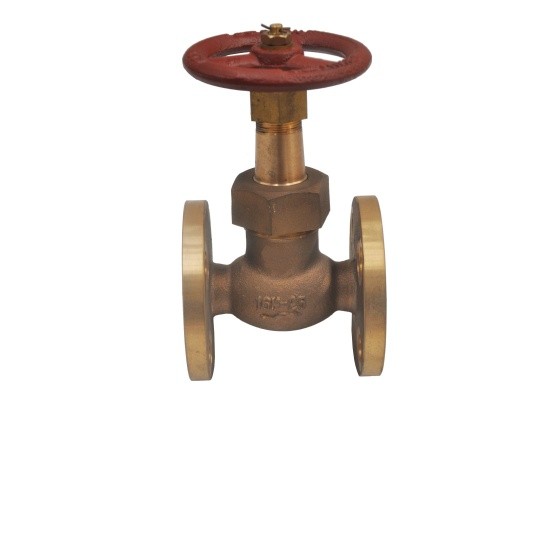

PESCO JIS F7301 Marine Bronze Valve is a marine valve that complies with Japanese Industrial Standards (JIS) and has a wide range of applications and more specific working environments.
Standard: JIS F7301, 7302, 7303, 7304, 7351, 7352, 7409, 7410, etc.
Material: bronze, brass, stainless steel, cast iron, cast steel, forged steel, etc.
Type: marine bronze globe valve, marine bronze angle valve, navy bronze check valve, marine bronze gate valve, marine bronze ball valve, marine bronze self closing valve, marine bronze quick closing valve, marine bronze strainer, marine bronze storm flap valve, etc.
Class 150 bronze 5K, 10K, 16K marine bronze valve.
Media: Water, Oil, Steam.
Applications: seawater piping, freshwater piping, oil piping, steam piping, etc.
Firstly, its application scope is quite extensive. In the field of ships, PESCO JIS F7301 Marine Bronze Valves are mainly used in the pipeline systems of ships, such as the transportation of media such as seawater, fresh water, and lubricating oil. In the industrial field, JIS F7301 bronze valves are more suitable for industrial pipeline systems such as water treatment, petrochemicals, oil and gas, and power generation. In the international regional field, it is commonly seen in shipbuilding projects exported to countries such as Japan, South Korea, Singapore, and Vietnam. In the market field, they are mainly used for ship owners, superyachts, shipyards, offshore companies, ship chandlers, piping & construction, and maritime companies.
The PESCO JIS F7301 Marine Bronze Valve has more unique operating characteristics. The PESCO JIS F7301 Marine Bronze Valve has a nominal pressure rating of 5K (approximately 0.5MPa), and some models can be extended to 16K (approximately 1.6MPa). Regarding its temperature range, its working medium is water vapour with a temperature generally not exceeding 300℃.
In terms of material characteristics, the PESCO JIS F7301 Marine Bronze Valve body and valve cover are made of bronze (such as tin bronze, aluminum bronze, C95800, Rg5, Rg10, CuSn10, C90500, etc.), which has excellent corrosion resistance and wear resistance. The valve stem is made of stainless steel, brass or aluminum bronze, the valve disc is made of tin bronze, and the sealing material is PTFE (polytetrafluoroethylene)

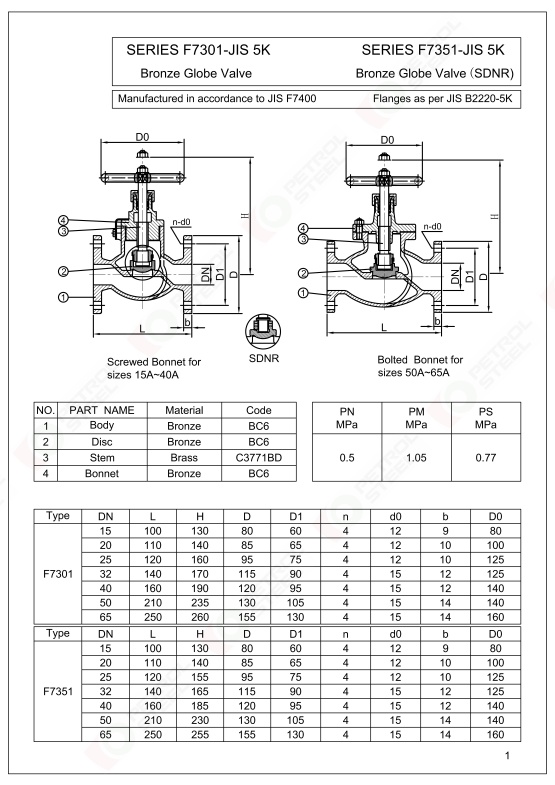

The structural design of PESCO JIS F7301 Marine Bronze Valve is a straight through (Type A) structure, manually operated, in compliance with JIS F7301 standard, and manufactured and inspected in full compliance with JIS F7300 series standards. Typical model example, JIS F7301 5K Marine Bronze globe valve: nominal diameter DN15-DN400, suitable for seawater, fresh water, lubricating oil media, etc. JIS F7303 16K Marine Bronze Stop Valve with nominal diameter DN15-DN400, higher pressure rating. For specific product parameters or supplier information, please refer to the datasheet of Peter Steel CO., LTD.
Headquarters: A-4F, Vantone Center, A6, Chaowai St., Chaoyang Dist., Beijing, China.
Tel/Fax: +86 10 8599 9168
WhatsApp/WeChat: +86 159 0035 7871
Email: sales@petrolsteel.com, jackywinn@foxmail.com
