Description

PETROL STEEL CO., LTD is the professional supplier (research, development, and export) of Gauging Pig Propipe in the world. And we exported the Gauging Pig Propipe for more than 10 years.

Gauging Pig, High-Pressure Gauging Pig, Displacement Pigs, Cleaning Pigs, Profile Pig, Pipeline Pigs, Transmitter Pigs, Specialty Pigs, Hole Jet Pig, Brush Cleaning Pigs, Propipe, Polyurethane Cleaning Pig Scraper, Gauge Plates, Pipeline Pig Cups, Pigging Cup, Cup Pig

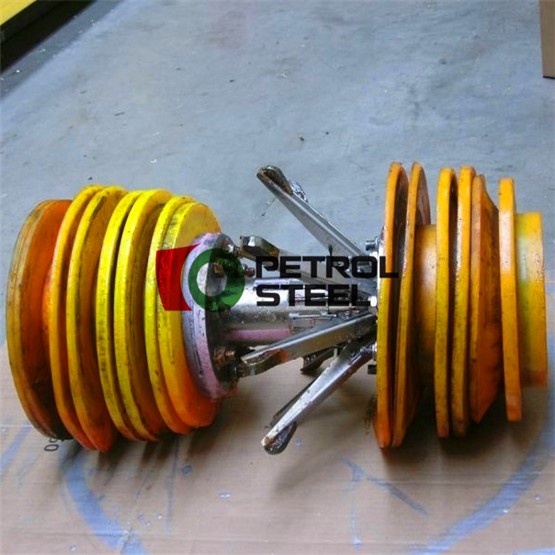

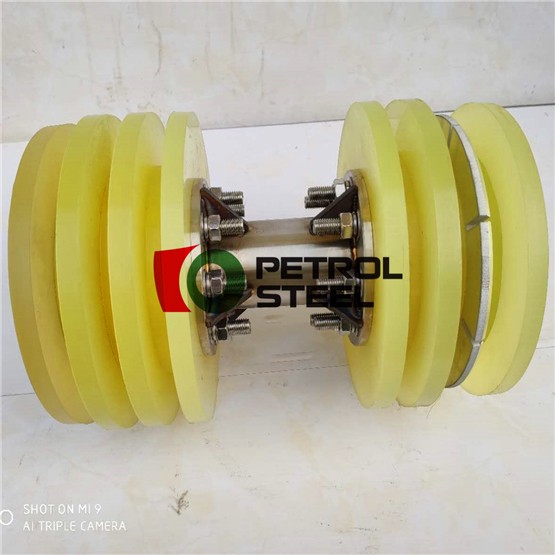

1. Features of Gauging Pig:
The main body is a stainless steel shaft with 2 straight guide plates.
Comes with 4 round, flat, and strong high-elastic polyurethane discs as cleaning and sealing parts.
In addition, it is equipped with a diameter-measuring plate made of 8 mm aluminium.
This calliper can run bidirectionally. If it is stuck in the pipeline during operation, it can return to operation and return to the origin, which can improve safety performance.

2. Function of the Displacement Pigs:
Water pressure test, pipeline descaling, diameter measurement, solid medium transportation and different fluid isolation.
Can be run repeatedly in the pipeline in both directions.

3. The applicable medium of the pipeline pigs:
Liquid and gas pipelines, solid medium pipelines, new pipelines.

4. The Working range of the Transmitter Pigs: ∮108mm—∮1016mm

5. Technical parameters of the Propipe:
Starting pressure: 0.3 MPa,
Pressure resistance: 40 MPa,
Impact resistance: 750g,
Tensile strength: 6,800 psi,
Tensile strength: 62 MPa,
Stretching rate: 460%,
Wear resistance: 2 mm/100 km,
One operation distance: 100 km-300 km.
Working temperature: -30℃—100℃
Pass rate: 1 (D)
Theme material: 324 stainless steel

The Gauging Pig (Propipe) is designed to fit a 282.7mm Pipe ID with an 8mm thick aluminium plate, and the gauge plate measures 95% of the Pipe I.D. This includes the 12” 2x4 Bi-Di Gauge Pig, PBG120231, along with 4 spare standard sealing discs.
