Description
As the famous starter of designing and research the French discharge valves, PETROL STEEL CO., LTD is committed to producing and supplying Aluminum Alloy Venne Perolo.

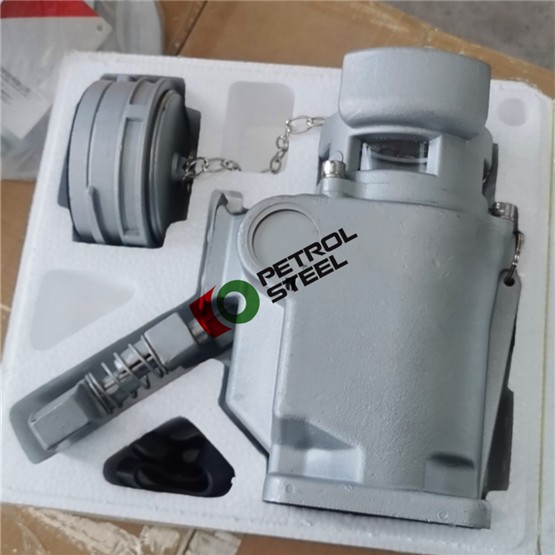

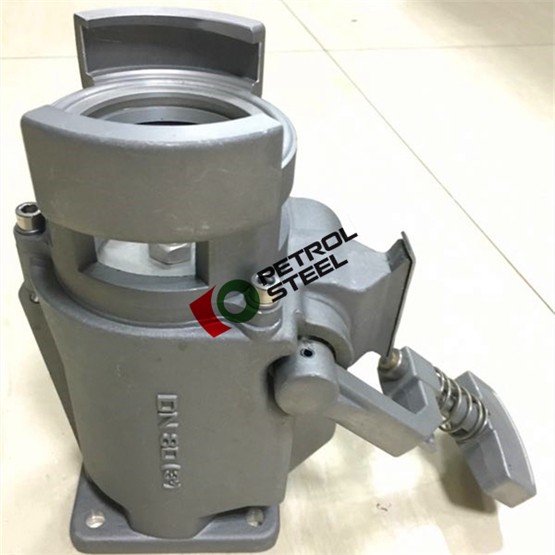

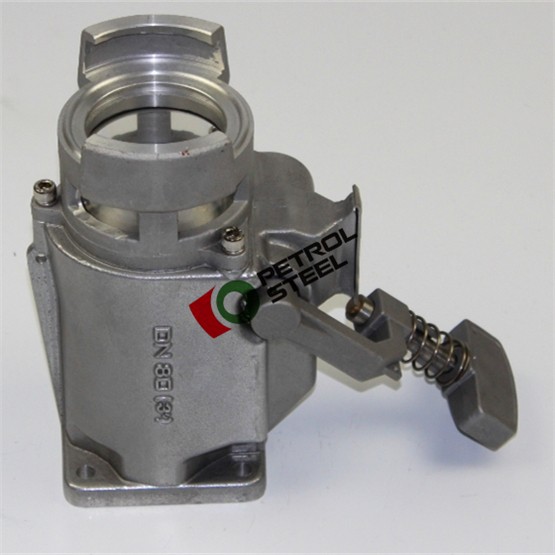

One complete set of the Aluminum Alloy Venne Perolo includes the valve body, valve seat, valve disc, valve stem, and valve body, all of which have inlets and outlets.
The inlet and the oil outlet of the oil tanker are fixed and connected with a seal, and the sealing surface of the valve clack coincides with the valve seat.
The working principle of the Aluminum Alloy Venne Perolo is mainly: the valve clack is connected to the valve stem through the connecting rod, and the back of the valve clack is provided with a lug, which is movably mounted on one end of the connecting rod by a pin, and the end of the connecting rod is provided with contact with the back of the valve clack. The other end of the connecting rod is fixedly connected with one end of the valve stem.
The other end of the valve stem penetrates the outside of the valve body and is fixedly connected with one end of the rocker. The other end of the rocker is provided with a locking pin on the valve body. A locking block that cooperates with the locking pin is provided. When the valve stem moves, it is matched with the seal between the valve body. When the valve is opened and closed, the locking pin on the valve stem and the locking block on the valve body cooperate to control the opening and closing of the locking valve. The French drain valve has the advantages of reliable sealing performance and fast oil unloading speed and is suitable for the control valve of the oil outlet of the tank truck.
About the French discharge valves and the Aluminum Alloy Venne Perolo, PETROL STEEL can supply the following items: gate gurgle valve, French discharge valves, Tankfly valves, Bottom Discharge Valves, oil drain valves, oil relief valve, oil-pressure release valve, oil relief valve, oil pressure relief valve, pressure release valve, free wheel valve drain line, gasoline tank dump valve, spill valves,tubing bleeder, stainless steel quick couplings, stainless steel clamp couplings, quick couplings clamps, blind caps, end dust caps, Aluminum alloy quick connector, double female and double male quick connectors, female to male connectors, tank truck connectors, gas station oil unloading quick connectors, aluminum alloy quick connectors, female end variable diameter tubing, quick connectors, tank truck accessories, French unloading valve joint, tank truck unloading valve, aluminum alloy French joint, tank truck French joint, stainless steel manhole cover, emergency cut off valves, stainless steel bottom valves, API reducing coupling, vapor recovery valves, vapor recovery coupler, ventilation reducing coupling, combing vent valves, pressure safety valves, overfill anti-fire breather valves, rotary gauge hatch, brass bottom valves, all-weather breath valve, corrugated flame arrester, alcohol gasoline dryer, vacuum pressure flame arrester breather valves, Ground API coupling, double male quick coupling, internal thread coupling, female to male quick coupling, double female quick coupling, brass coupling, ND500 MULTIDO COVERLID safety Relief Valve, Pneumatic AGN5X, etc.
Detailed descriptions
of our Aluminum Alloy Venne Perolo of PETROL STEEL CO.,LTD:
1. Dust cover for the discharge port of the tanker, stainless steel male end cap, aluminum alloy male end cap, copper female end cap;
2. Nominal pressure: 10P, 1.0Mpa, 10 kg pressure;
3. Applicable temperature: -20℃ to 120℃;
4. Applicable medium: oil unloading truck, tank truck, oil tanker, machinery manufacturing, metallurgy and chemical industry, central heating, refrigeration, forging, oil and gas, water, acidic and alkaline liquids, etc.;
5. Thread type: NPT BSP BSPT;
6. Connection: internal thread connection, external thread connection, flange connection, socket welding, wrench type, hose connection;Sealing material: ordinary rubber nitrile rubber, fluorine rubber, ethylene propylene rubber;
7. Features:
Time-saving and labor-saving: When disconnecting and connecting through the quick connector, the unloading action is simple, saving time and manpower.
Fuel saving: When the oil circuit is disconnected, the single valve on the quick connector can close the oil circuit so that the oil will not flow out and avoid the loss of oil and oil pressure.
Environmental protection: When our Aluminum Alloy Venne Perolo, the quick connector is disconnected and connected, the oil will not leak, which protects the environment.
PETROL STEEL CO.,LTD Aluminum Alloy Venne Perolo has a unique design and is easy to transport: large equipment or hydraulic tools that need to be easily carried can be transported after being disassembled using quick connectors, and then assembled and used after arriving at the destination.
One complete set of the Aluminum Alloy Venne Perolo includes the valve body, valve seat, valve disc, valve stem, and valve body, all of which have inlets and outlets.
The inlet and the oil outlet of the oil tanker are fixed and connected with a seal, and the sealing surface of the valve clack coincides with the valve seat.
The working principle of the Aluminum Alloy Venne Perolo is mainly: the valve clack is connected to the valve stem through the connecting rod, and the back of the valve clack is provided with a lug, which is movably mounted on one end of the connecting rod by a pin, and the end of the connecting rod is provided with contact with the back of the valve clack. The other end of the connecting rod is fixedly connected with one end of the valve stem.
The other end of the valve stem penetrates the outside of the valve body and is fixedly connected with one end of the rocker. The other end of the rocker is provided with a locking pin on the valve body. A locking block that cooperates with the locking pin is provided. When the valve stem moves, it is matched with the seal between the valve body. When the valve is opened and closed, the locking pin on the valve stem and the locking block on the valve body cooperate to control the opening and closing of the locking valve. The French drain valve has the advantages of reliable sealing performance and fast oil unloading speed and is suitable for the control valve of the oil outlet of the tank truck.
About the French discharge valves and the Aluminum Alloy Venne Perolo, PETROL STEEL can supply the following items: gate gurgle valve, French discharge valves, Tankfly valves, Bottom Discharge Valves, oil drain valves, oil relief valve, oil-pressure release valve, oil relief valve, oil pressure relief valve, pressure release valve, free wheel valve drain line, gasoline tank dump valve, spill valves,tubing bleeder, stainless steel quick couplings, stainless steel clamp couplings, quick couplings clamps, blind caps, end dust caps, Aluminum alloy quick connector, double female and double male quick connectors, female to male connectors, tank truck connectors, gas station oil unloading quick connectors, aluminum alloy quick connectors, female end variable diameter tubing, quick connectors, tank truck accessories, French unloading valve joint, tank truck unloading valve, aluminum alloy French joint, tank truck French joint, stainless steel manhole cover, emergency cut off valves, stainless steel bottom valves, API reducing coupling, vapor recovery valves, vapor recovery coupler, ventilation reducing coupling, combing vent valves, pressure safety valves, overfill anti-fire breather valves, rotary gauge hatch, brass bottom valves, all-weather breath valve, corrugated flame arrester, alcohol gasoline dryer, vacuum pressure flame arrester breather valves, Ground API coupling, double male quick coupling, internal thread coupling, female to male quick coupling, double female quick coupling, brass coupling, ND500 MULTIDO COVERLID safety Relief Valve, Pneumatic AGN5X, etc.
Detailed descriptions
of our Aluminum Alloy Venne Perolo of PETROL STEEL CO.,LTD:
1. Dust cover for the discharge port of the tanker, stainless steel male end cap, aluminum alloy male end cap, copper female end cap;
2. Nominal pressure: 10P, 1.0Mpa, 10 kg pressure;
3. Applicable temperature: -20℃ to 120℃;
4. Applicable medium: oil unloading truck, tank truck, oil tanker, machinery manufacturing, metallurgy and chemical industry, central heating, refrigeration, forging, oil and gas, water, acidic and alkaline liquids, etc.;
5. Thread type: NPT BSP BSPT;
6. Connection: internal thread connection, external thread connection, flange connection, socket welding, wrench type, hose connection;Sealing material: ordinary rubber nitrile rubber, fluorine rubber, ethylene propylene rubber;
7. Features:
Time-saving and labor-saving: When disconnecting and connecting through the quick connector, the unloading action is simple, saving time and manpower.
Fuel saving: When the oil circuit is disconnected, the single valve on the quick connector can close the oil circuit so that the oil will not flow out and avoid the loss of oil and oil pressure.
Environmental protection: When our Aluminum Alloy Venne Perolo, the quick connector is disconnected and connected, the oil will not leak, which protects the environment.
PETROL STEEL CO.,LTD Aluminum Alloy Venne Perolo has a unique design and is easy to transport: large equipment or hydraulic tools that need to be easily carried can be transported after being disassembled using quick connectors, and then assembled and used after arriving at the destination.
Economy: All the above advantages have created economic value for customers.
For more info and price of Aluminum Alloy Venne Perolo specifications, please send us the inquiry, you will get the quick reply soon.
