Description

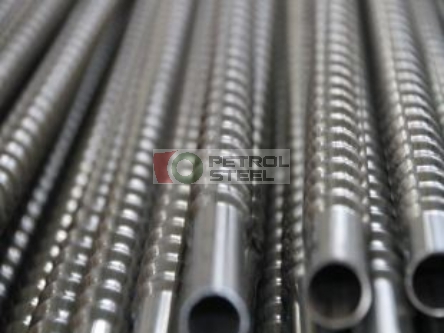

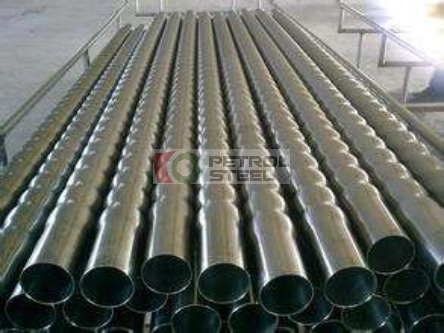

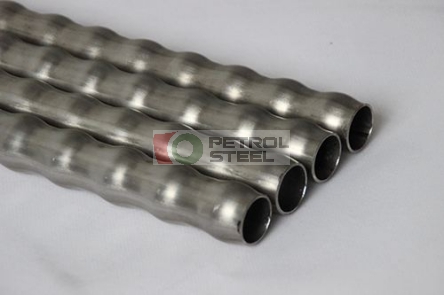

PETROL STEEL CO., LTD is a leading manufacturer and stockist of Corrugated Stainless Steel Tubing ASME BPE A270 SF1 in China.
The ultra-precision piping products processed by PETROL STEEL CO., LTD. are all made from 316L (VIM+VAR). The strict quality management and electropolished technology can bring the ultra-purity of the inner surface of all the piping products, which can fully meet the ultra-high purity gas circuit applications. The surface roughness of the EP tubing can be controlled below Ra 0.1μm. EP tubing are processed under ultra-clean environment from processing to packaging. From production to delivery, more than ten quality tests are required, which can guarantee the cleanliness and safety of the EP tubing during its applications.

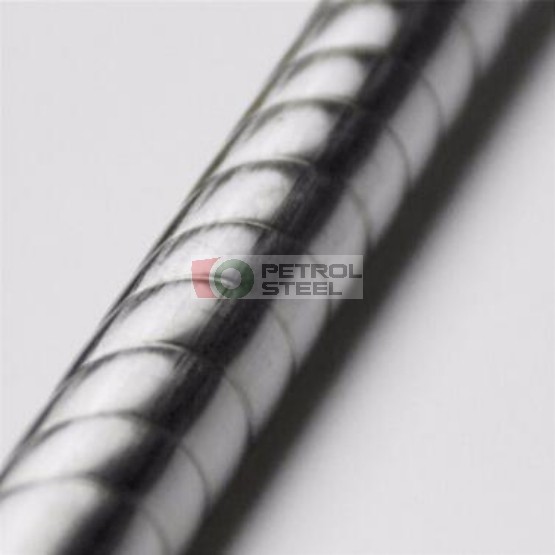

Corrugated Stainless Steel Tubing ASME BPE A270 for Pharmaceutical Industry
ASME BPE A270 SF1 Stainless Steel tubing ID polished 20 μ-in Ra (0.4 μm), OD polished Ra ≤0.8um (grit#320)
ASME BPE A270 SF1 stainless tubing size 1,8"-10",Length 1-12 m/pc

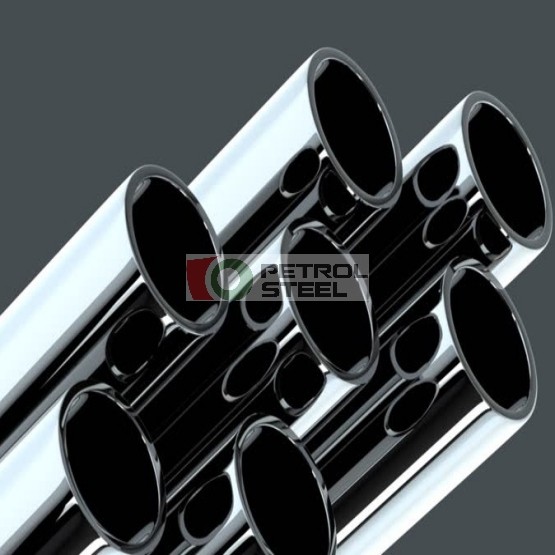

High Purity Polished Seamless stainless steel Tubing Surface finish is 20 μ-in Ra (0.4 μm) ID maximum, 30 μ-in Ra (0.8 μm) OD maximum
|
Size (Tube OD) |
Part Number | Dimensions | |||
| 304L | 316L | Wall | ID | Gauge | |
| 1/2" | A270 | A270 | 0.065 | 0.370 | 16 |
| 3/4" | A270 | A270 | 0.065 | 0.620 | 16 |
| 1 " | A270 | A270 | 0.065 | 0.870 | 16 |
| 1-1/2" | A270 | A270 | 0.065 | 1.370 | 16 |
| 2 " | A270 | A270 | 0.065 | 1.870 | 16 |
| 2 " | A270 | A270 | 0.120 | 1.760 | 11 |
| 2-1/2" | A270 | A270 | 0.065 | 2.370 | 16 |
| 3 " | A270 | A270 | 0.065 | 2.870 | 16 |
| 3 " | A270 | A270 | 0.120 | 2.760 | 11 |
| 4 " | A270 | A270 | 0.065 | 3.870 | 16 |
| 4 " | A270 | A2700 | 0.083 | 3.834 | 14 |
| 5 " | A270 | A270 | 0.083 | 4.834 | 14 |
| 6 " | A270 | A270 | 0.083 | 5.834 | 14 |
| 6 " | A270 | A270 | 0.109 | 5.782 | 12 |
| 8 " | A270 | A270 | 0.109 | 7.782 | 12 |
| 10 " | A778 | A778 | 0.109 | 9.782 | 12 |
| 12 " | A778 | A778 | 0.109 | 11.782 | 12 |
ASME BPE A270 SF1 Stainless Steel Pipes OD & ID polished Ra ≤0.8um (grit#320)
ASME BPE A270 stainless tubing size 1/8"-10", Length 1-12 m/pc,
High Purity Polished Seamless stainless steel Tubing,
Surface finish 20 μ-in Ra (0.4 μm) ID maximum, 30 μ-in Ra (0.8 μm) OD maximum measured per ASME, ANSI B46.1,
with the profilometer reading at 90 degrees to major polishing pattern.
AP Grade, Anneal and Pickled 316L piping
BA Grade, Bright Annealed 316L pipes
MP Grade, mechanical Polished 316L tubes
EP Grade, electropolished 316L tubing
|
Size Range
Governing Production Specifications - ASTM A270/A269/A249 |
|||||||||||||||||||||||
The grade of the Stainless Steel Corrugated Tube are as the followings:
Corrugated Stainless Steel Tube, ASME BPE A270 Stainless Steel Tubes, ASTM A270 pipe, ASTM A182 tube, A270-BPE Corrugated Tube, ASTM A270 S2 pipe, BS 4825 tube, ASTM A269 pipe, ASME B46.1 pipe, ANSI B46.1 tube, ASTM A554 pipe, ASTM A249 tube, ASTM A312 pipe, ASTM A480 tube, DIN 11850 pipe, GrX2CrNi19 pipe, GrX2CrNiMo17 pipe, 13MnNi6 pipe, 15NiMn6 tube, A790 S31803 tube, 03X16H15M3 tubo, 03X17H14M2 pipe, UNS S31254 pipe, Titanium fitting, Copper Nickel pipe, Inconel pipe, Monel tube, etc.

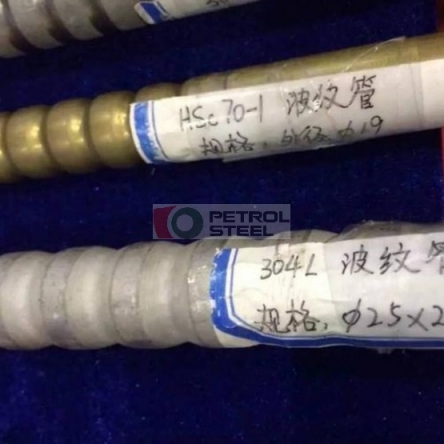

The corrugated tubing we can supply:
stainless steel tube ASME BPE A270, mechanically polished tubing μm 20 ra ID, corrugated tube stainless steel 316L, High Purity Polished tube stainless steel, High Purity Polished stainless steel pipe, ASME BPE A270 High Purity Polished tube, 316L corrugated tubing ss Pharmaceutical Industry, stainless steel 304 corrugated tube ASME BPE A270, BPE A270 corrugated tube 304 vs 316, corrugated tube 304 welding, 304 seamless corrugated tube, corrugated tubing 304 stainless steel, etc.
The applications of our Stainless Steel Corrugated Tube:
1. Pressure Vessels, Heat Exchangers, and Condensers
2. Chemical & Petrochemical Industries
3. Gas Industries
4. Power Generations
5. Marine Equipments
6. Food & Beverage Processing
7. Automotive Industries
8. Pulp & Paper Industries
Our professional solderers and welders obtained the certificates, such as SMAW, GTAW, GMAW, FCAW, etc. The welded technique of the fittings: orbital welding for Pharmaceutical Bioprocessing and Semiconductor Industry.
The items what we are good at and can supply are as the followings:

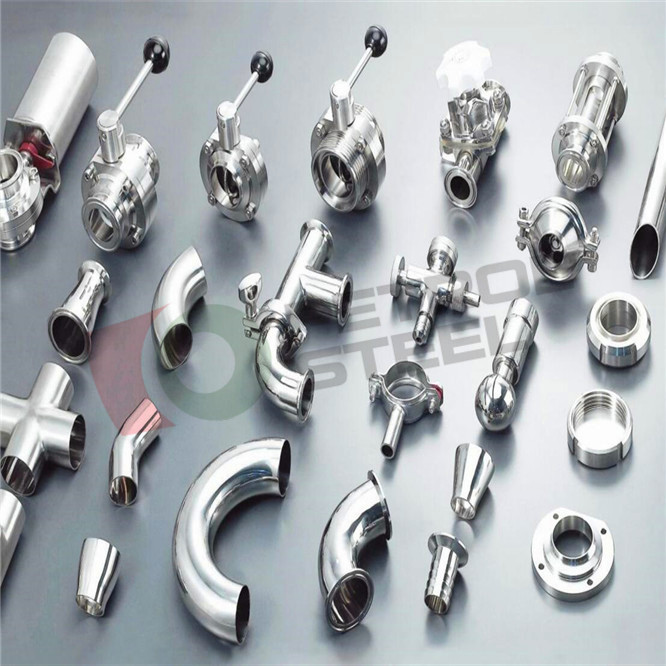

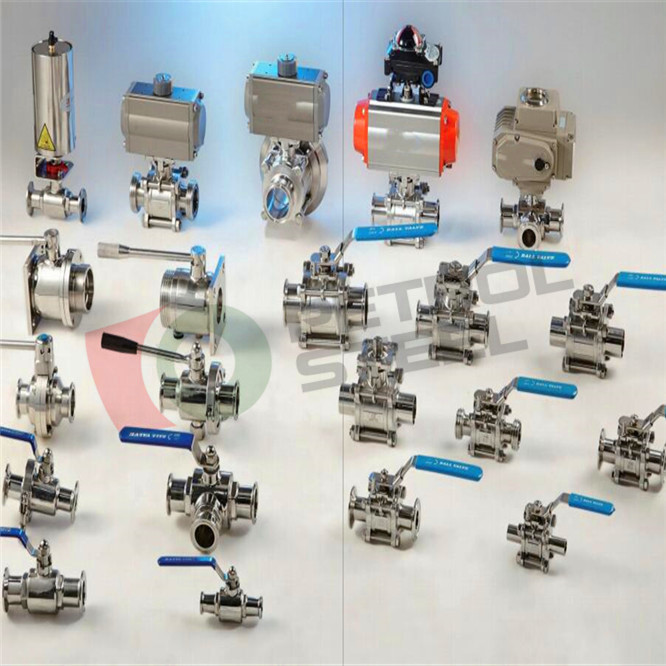

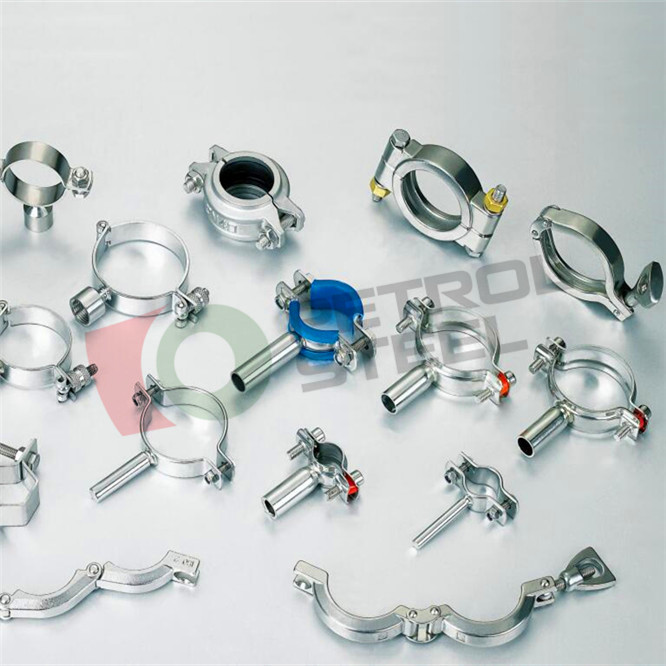

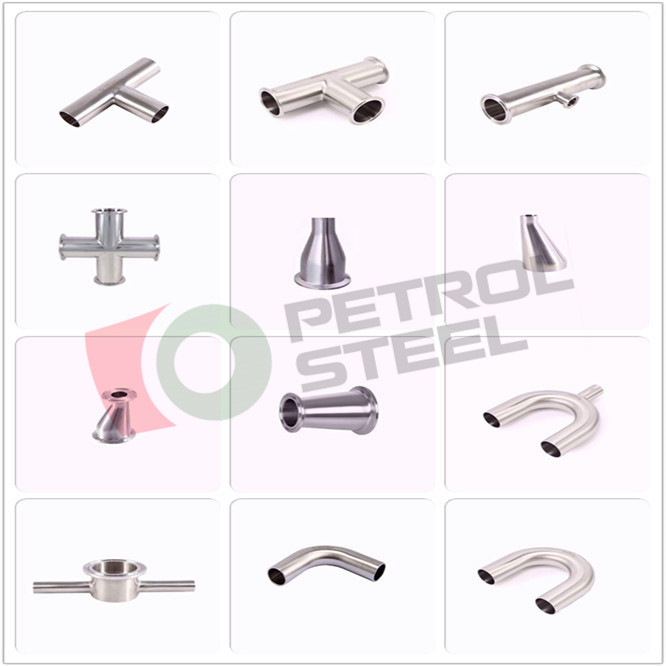

BPE Hi Purity Stainless Steel Sanitary Tubing 316L, Pharmaceutical Elbow, UHP Compress Fitting, Sterile Diaphragm Valves, Sterile Ball Valves, Sterile Butterfly Valves, Biotechnology Tee, BPE Reduction Eccentric, 3A Hygienic Tubing Fitting, Atw Clamp Joint Elbow, Atw Straight Tee, Clamp Joint Straight Tee, Atw Reducing Tee, Clamp Joint Reducing Tee, Atw Instrument Tee, Atw 180 Degree Reducing Tee Type, Atw Reducing Cross, Clamp Joint Straight Cross, Clamp Joint Tube Weld Concentric, Clamp Joint Tube Weld Eccentric Reducer, Clamp Joint Eccentric Reducer, Clamp Joint Concentric, Hygienic ATW Elbow, A270 polished tubing, 3A U Bend Tube, Sanitary Pipe Fitting, 3A Series Sanitary Fitting, BPE Sanitary Pipe, 3A BPE ASTM A270 Series Pipeline, High Purity 316L Pump, Sanitary Centrifugal Pump, Milk Pump, Juice Pump, Beverage Pump, CIP Pump, Stainless Steel Pump, Hygienic Pump for Food, Beverage, Cosmetic, Bioprocessing and Semiconductor Industries.
ONE OF THE KIND, MILLIONS OF CHOICES
SUPERIOR QUALITY
PROMPT DELIVERY
FAVORABLE FEEDBACK
ALL AVAILABLE IN PESCO
SELECT PESCO, YOU WILL BE RIGHT
For more info and price of Corrugated Stainless Steel Tubing ASME BPE A270, please send us the inquiry and you will have the quick reply soon.
