How to Select a Reliable Large-Diameter Steel Bends Supplier for Pipeline

How to Select a Reliable Large-Diameter Steel Bends Supplier

Large-diameter steel bends are key load-bearing components that change pipeline routing in large-scale oil and gas pipelines, integrated refining-chemical and offshore engineering (EPC) projects, and their quality directly affects the safety and service life of the entire energy transmission artery. When confronted with a sea of suppliers in the market, how do you find a manufacturer that actually has manufacturing skills and proven success?

Third-party inspection (TPI) inspectors, appointed by EPC project owners, have a rigorous auditing perspective. PETROL STEEL CO., LTD has over 20 years of practical experience in the industrial pipeline export market. The article will analyze the key criteria for choosing a reliable API 5L and large-diameter steel bends supplier.

I. Mother Pipe Source Control and Induction Bending Process (TPI inspector’s view)

When a TPI inspector arrives on site to oversee the owner's production, the first thing they do upon entering a bend manufacturing facility is not to examine the final products but to audit the traceability of the "mother pipe" and the induction bending process.

Reliable suppliers should have a complete traceability chain for mother pipe heat/batch numbers, and the materials should come from big domestic players (CNPC, Sinopec) or well-known international manufacturers (for example, high-grade API 5L PSL2 pipes, such as X65, X70, and X80). In the forming stage, TPI inspectors focus on parameter control of the induction heating bending machine; the heating temperature, bending speed, and cooling rate must all be controlled by a fully automatic closed-loop control system. Excessive variation in parameters can easily lead to issues such as high wall thinning at the extrados (outer arc), high ovality, or degradation of the material's microstructure, which creates hidden risks of pipeline rupture during operation.

II. Post-forming heat treatment and extensive metallurgical & mechanical testing (core technical and quality aspects)

After high-temperature induction bending, the original mother pipe undergoes fundamental changes in its mechanical properties. Therefore, post-bending heat treatment (Quench & Temper, for example) is a benchmark to assess a supplier’s technical expertise.

Third-party inspectors closely supervise the sampling and testing of mechanical properties of the pipe body and weld zones during on-site witness inspections. These tests comprise:

Low-temperature Charpy V-Notch Impact Testing: Demonstrates that the bent pipe is high in toughness and not subject to brittle fracture at extremely low temperatures (e.g., -40°C or colder).

Hardness measurement and microstructure analysis: strict control of hardness limits (e.g., HV10 or HRC limits for sour service environments) to avoid Hydrogen-Induced Cracking (HIC) and Sulfide Stress Corrosion Cracking (SSCC).

100% NDT (Non-Destructive Testing): Ultrasonic thickness measurement (UT) on extrados (outer arc). Magnetic particle testing (MT) and 100% radiographic or ultrasonic testing (RT/UT) of welds to ensure no micro-cracks are undetected.

III. Dimensional Control and End Beveling Accuracy (From an EPC Installation Perspective)

Installation accuracy is important for EPC contractors, who want to achieve a seamless fit-up upon the arrival of the bent pipe at the site. Large-diameter steel bends (e.g., 24" to over 60") will tend to deform slightly after the hot bending process.

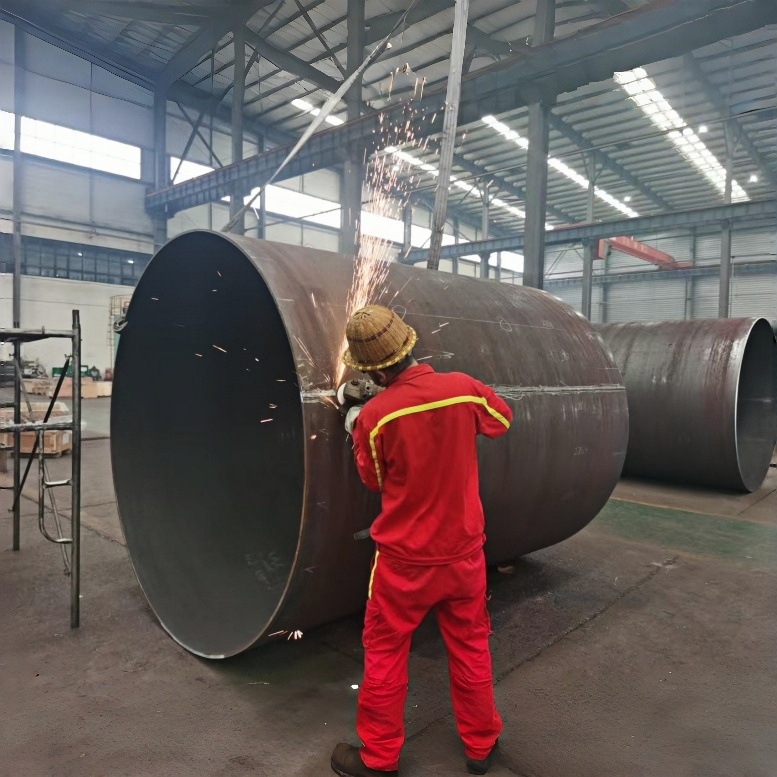

Top suppliers such as PETROL STEEL use high-precision CNC beveling machines to process the end prior to shipping. They tightly conform to ASME B16.49 or API 5L specifications, governing tolerances on bending angles, end flatness, and wall thickness transition beveling within millimeter-level tolerances of error. This not only greatly shortens fit-up and on-site welding time but also effectively reduces stress concentration in field welding, ensuring the long-term and stable operation of the pipeline. IV. PETROL STEEL’s Export Fulfillment and Quality Assurance (A Business Viewpoint)

From the viewpoint of international trade and customer delivery, a reliable supplier must be able to produce the product and deliver it safely to the customer.

PETROL STEEL CO., LTD has more than 20 years of experience in processing and exporting large-diameter steel pipe bends all over the world. We fully understand the exceptionally strict requirements for qualifications and documentation on international EPC projects. All batches of bends are delivered from the factory with the original Mill Test Certificate (MTC) according to EN 10204 3.1 or 3.2. We fully support on-site supervision from the beginning to the end by international third-party inspection agencies such as SGS, BV, TÜV, and LR.

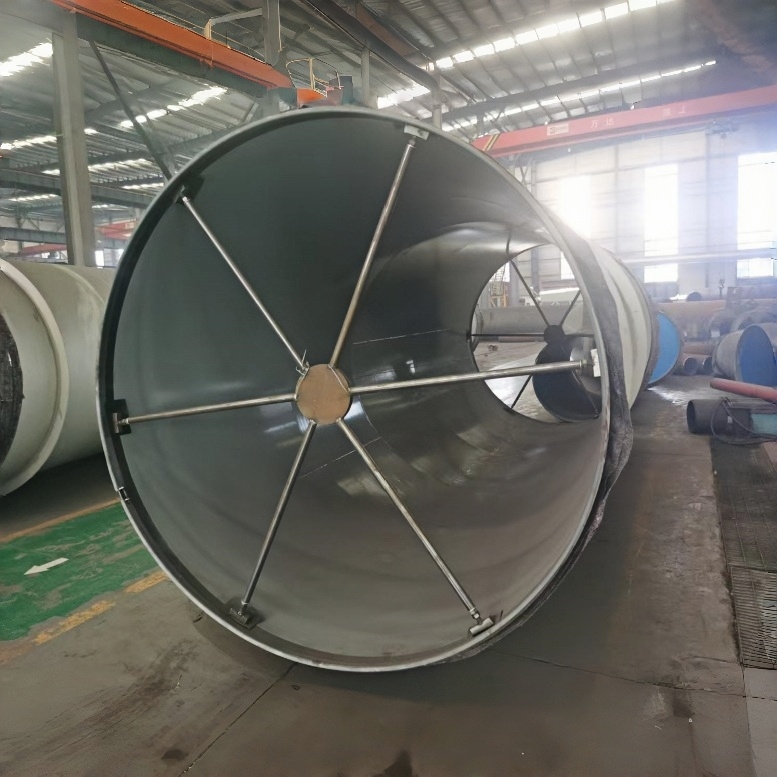

PETROL STEEL also applies customized protection solutions for packaging and anti-corrosion treatment of large-diameter bends. These are external anti-corrosion coatings (such as 3LPE, FBE, or coal tar epoxy), heavy-duty metal or rubber bevel protectors, and reinforced wooden pallet or steel frame packaging for ocean transport. This means the products are kept intact and undamaged even after months of shipping.

Conclusion: The Golden Rule for Choosing a Large-Diameter Steel Bends Supplier

At the end of the day, selecting the right large-diameter steel bend supplier is really about choosing a partner that combines manufacturing process control, inspection transparency, and guaranteed international fulfillment capabilities, backed by professional audits and practical experience from third-party inspectors.

Project procurement decision-makers should give utmost priority to whether the manufacturer has complete API 5L and ISO quality system certifications, has a proven track record (reference list) of successful delivery of similar large-diameter high-grade steel bends, and is willing to provide full access to clients for on-site inspection and supervision. PETROL STEEL is an original manufacturer with a long-term export history and a "zero-claim" quality record and is the surest guarantee that major pipeline projects will be completed on time, to the required quality and without problems.

20+ Years of Global Steel Pipe Export Experience
Zero Customer Claim Record
Stock Available for Fast Delivery
Professional QC & Technical Support
ALL AVAILABLE IN PESCO
SELECT PESCO, YOU WILL BE RIGHT

For more info and the price of high-quality Large-Diameter Steel Bends and their specifications, please send us an inquiry; you will get a quick reply soon.
