Melting Method AMS 5659 ESR VAR ESR VIM Vacuum induction melting VAR Vacuum Arc Remelting ESR Electro Slag Remelting

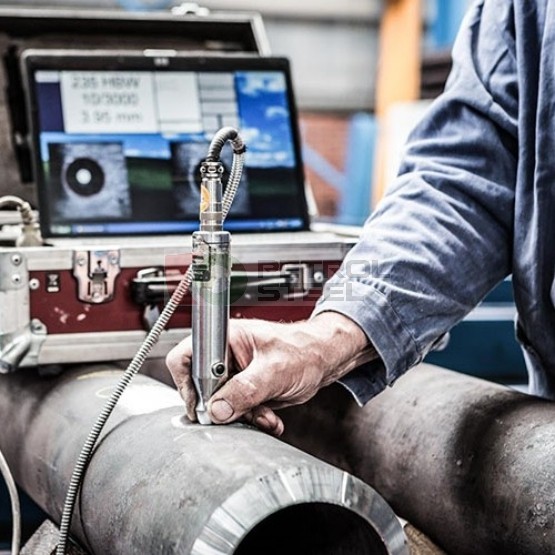

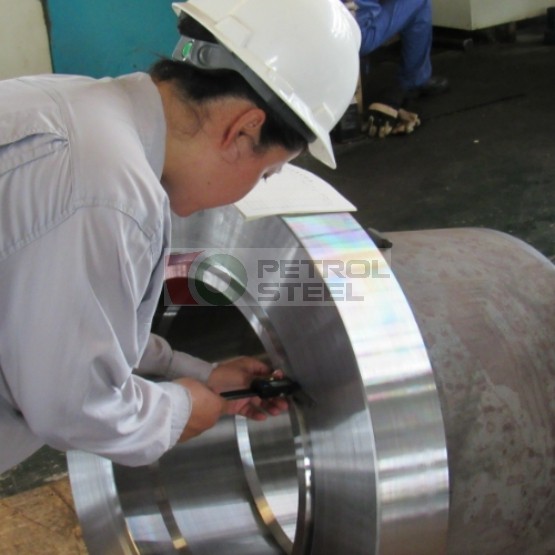

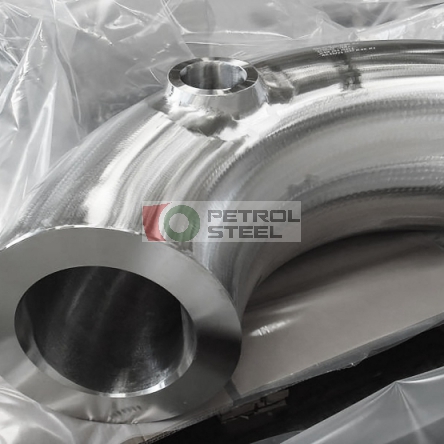

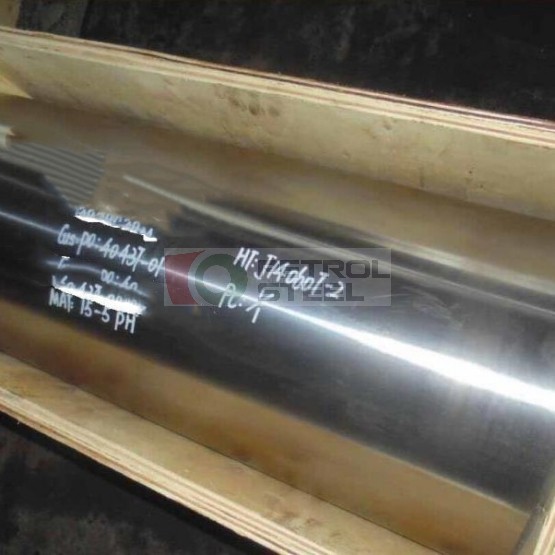

UT-Test Ultrasonic testing of our 15-5PH 100% per ASM 2630C and should meet the requirements of Class A (2mm FBH) All parts need to have 100% Ultrasonic testing All parts will need to be accompanied by a complete measurement report. The packaging design shall with appropriate handling, prevent corrosion, soiling, abrasion, and damage during the entire period of storage and transportation thereby maintaining the components in the specified conditions for at least 6 months.
Mechanical Test of our 15-5PH Specimen drawn from preform in longitudinal & transverse direction shall be solution treated and then precipitation treated to H1025. The specimen should meet the H1025 minimum tensile properties requirement as per AMS 5659. At least 3 samples shall be tested in each direction per heat batch.
