PESCO Heat exchanger is equipment widely used both upstream and downstream facilities, built for efficient heat transfer from one medium to another. Heat exchangers are classified by flow arrangement, parallel flow, and counterflow. Parallel flow (current) is the flow when two fluids enter the exchanger at the same end and travel parallel to one another to the other side. Counterflow (countercurrent) is when two fluids enter the exchanger from opposite ends.
Commonly used types:
Shell and tube
In oil and gas facilities, the following types are commonly used:
Shell and tube
Plate and frame
Uses of heat exchangers may vary depending on the process requirements, such as heat and cool fluids, heat recovery, separation, reboiling, condensing.
Shell And Tube Heat Exchanger

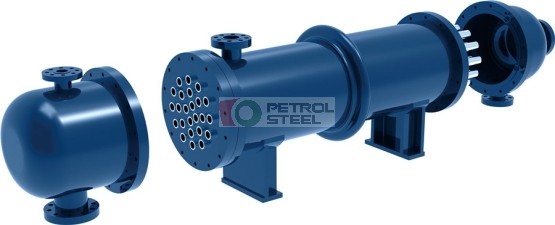

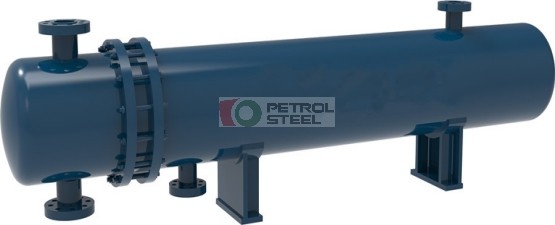

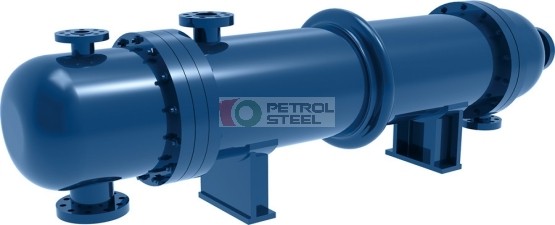

Shell and tube heat exchanger consists of a bundle of tubes and shells. Heat transfer occurs when one fluid that needs to be heated or cooled flows through the tubes and the second fluids runs over the tubes that provide the heat or absorbs the heat required.
The configuration depends on each process requirements. The main consideration for the design should be fluid involved, corrosion potential, problems of cleaning, pressure drop, heat transfer efficiency, tubes usually 20 ft. and 40ft.
Basic types of shell and tube heat exchangers are Fixed Tube Sheet, Floating Head, U-Tube.

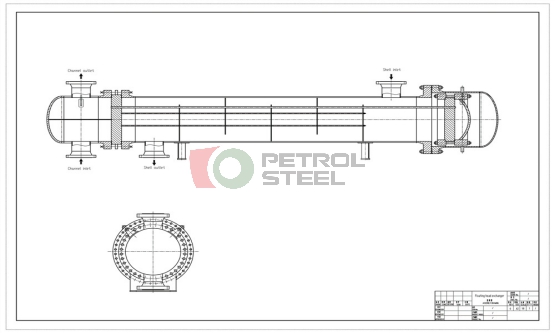

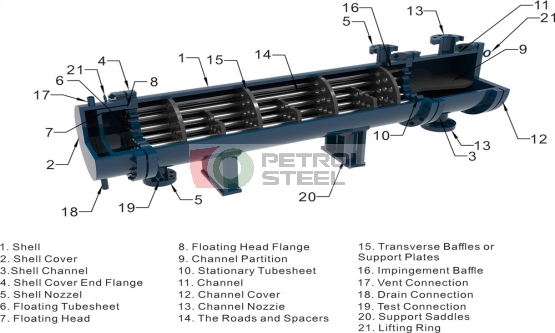

Floating Head heat exchanger

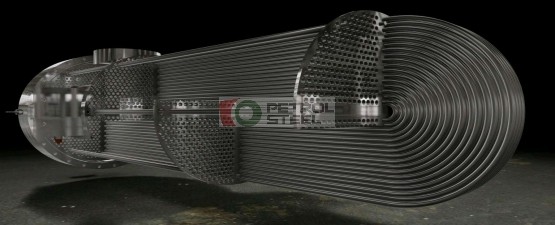

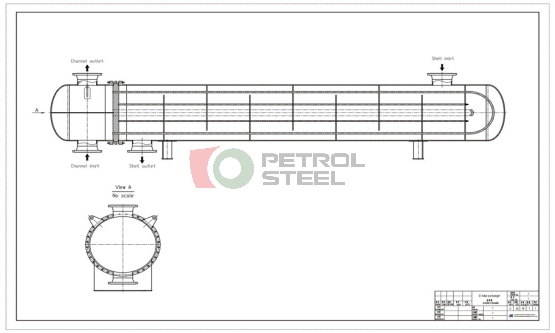

U Tube Heat Exchanger

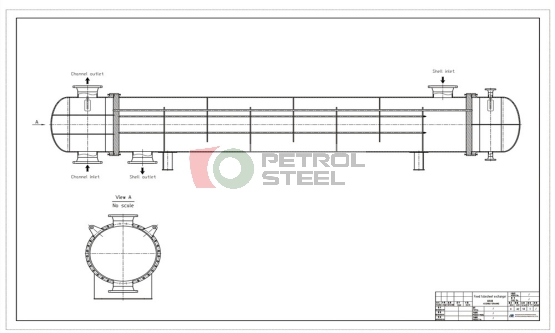

Fixed tube heat exchanger
ONE OF THE KIND, MILLIONS OF CHOICES
ALL AVAILABLE IN PESCO
SELECT PESCO, YOU WILL BE RIGHT
For more info and price of Heat Exchanger and the specifications, please send us inquiry, you will have quick reply soon.
