PESCO CFCC Carbon Fiber Composite Core Conductor ACFR ACCC
PESCO CFCC Carbon Fiber Composite Core Conductor ACFR ACCCPESCO CFCC Carbon Fiber Composite Core Conductor ACFR ACCCPESCO CFCC Carbon Fiber Composite Core Conductor ACFR ACCCPESCO CFCC Carbon Fiber Composite Core Conductor ACFR ACCC

PESCO CFCC Carbon Fiber Composite Core Conductor ACFR ACCC

  • CFCC Carbon Fiber Composite Core Conductor
  • ACCC Aluminum Conductor Composite Core
  • ACFR Aluminum Conductor Fiber Reinforced
  • CFCC Carbon Fiber Composite Cable
  • CFCC Carbon Fiber Composite Core Conductor , Carbon Fiber Composite Cable CFCC , ACCC Aluminum Conductor Composite Core , ACFR Aluminum Conductor Fiber Reinforced , Fiber Reinforced Aluminum Cable
    Inquiry Send Email

    Description

    PETROL STEEL CO.,LTD is specialized in designining and supply PESCO CFCC Carbon Fiber Composite Core Conductor ACFR ACCC.

    At present, the total length of CFCC conductors used in China is more than 30,000 km.
    China has become the state which has the largest quantity application of CFCC conductors in the world.

    PETROL STEEL CO.,LTD can supply but not limited as the following goods around the year:
    power distribution cables, power transmission cables, Electrical power transmission Conductor Cables, T type connector for ACFR RW conductor, ACFR-RW conductor suspension clip, Terminal clamp for ACFR RW 230/37 conductor, ACFR-RW 230 conductor protection rod, rounded and screwed conductors, Suspension kit, common matching fittings, strain clamps, splicing sleeves,  Damper FDZ, Spacer, ship type suspension clamps, pre-stranded type suspension clamp, pre-stranded tension clamp, traction net sleeve, splicing sleeve protection device, special clamp, assembling traction device, conductor hook,etc.

    CONDUCTOR
    Fiber Reinforced Aluminum Cable, HTLS type ACFR 230/37—FA-TT,
    The bare aluminum conductors reinforced with fiber type ACFR (Aluminum Conductor Fiber Reinforced) are commonly used as overhead conductors for transmission and distribution lines of electric power.
    The ACFR conductor operating temperature is I80 ° C and for emergencies (overload) 200 ° C.

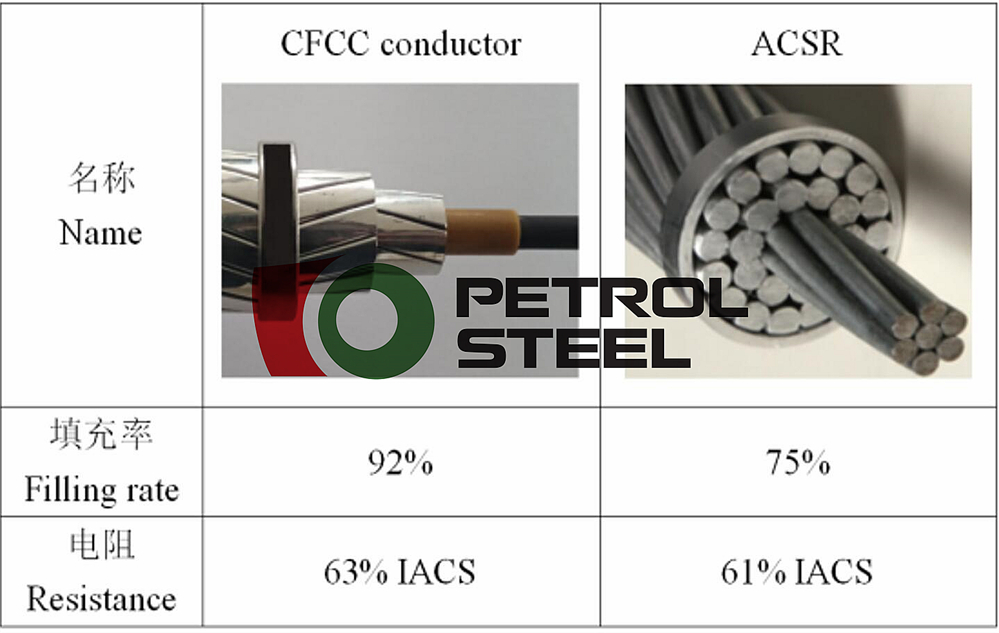

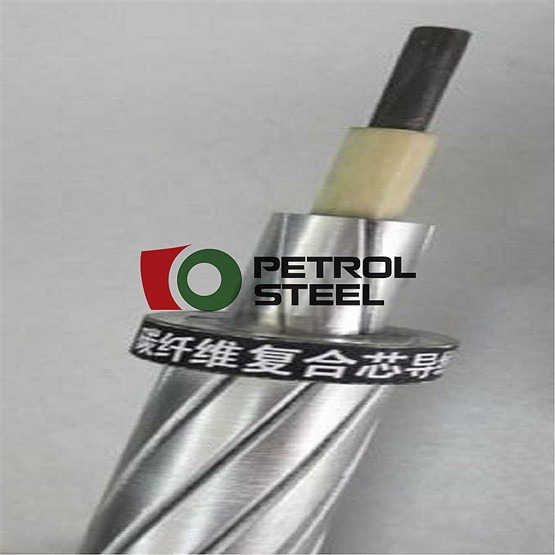

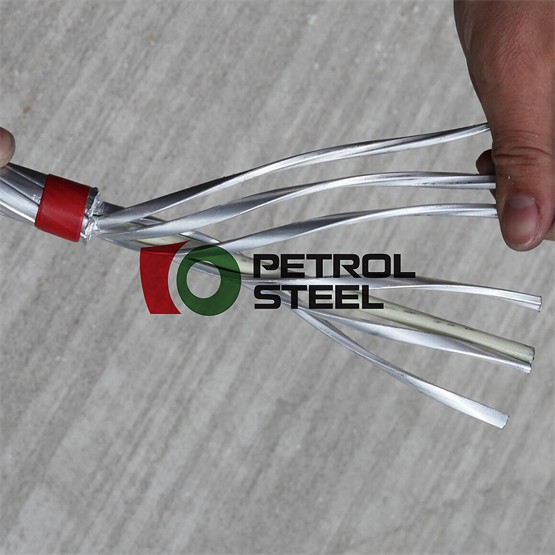

    The  CFCC conductor consists of CFCC and the outer aluminum wire.

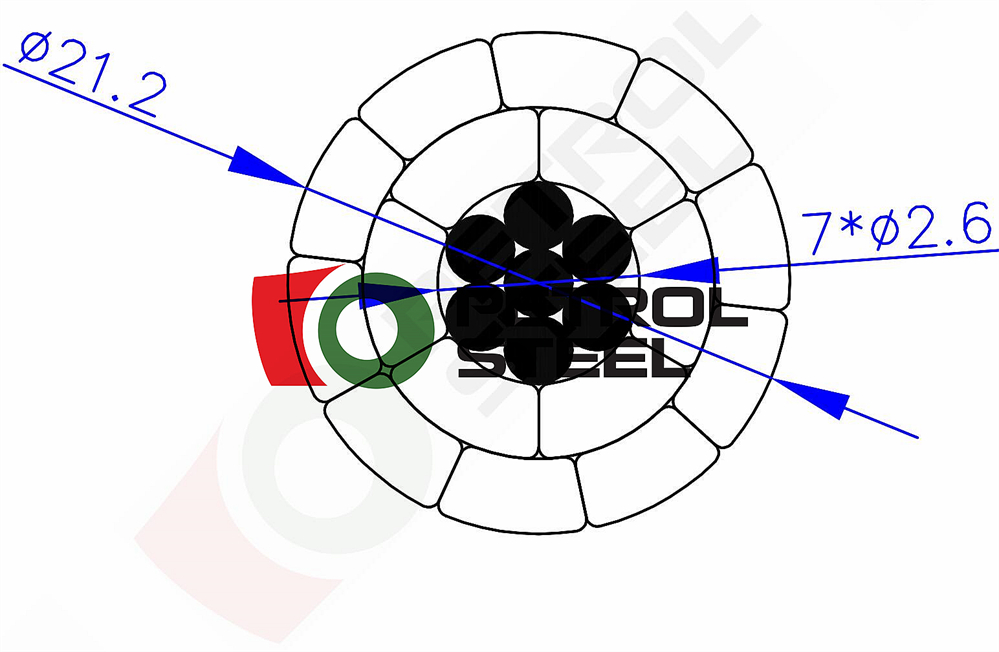

    Aluminum wire adopts a trapezoidal section.
    Carbon fiber composite core is a kind of high-performance carbon fiber product.

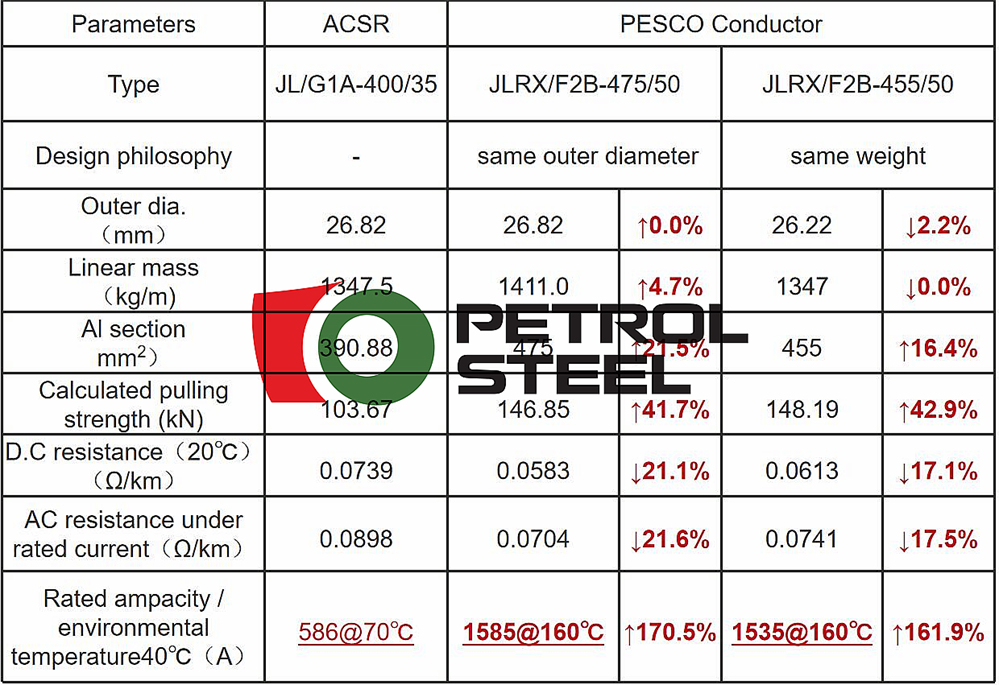

    Small-section and same-capacity conductors can be used to save the cost of conductors, towers, land acquisition, and infrastructure.
    The same outer diameter or same conductors mass can be used to save energy. Because of the small line loss, the comprehensive annual cost of a PESCO conductor is 50,000-150,000 yuan / kilometer / annual lower than ACSR.

    Before the product installation, engineering and technical staff should fully consult and understand the product installation key points. Due to the installation not complying with this manual requirement resulting in any loss and damage, our company does not undertake any responsibility. In many cases, we will send an on-site service engineer of CFCC to provide installation technical guidance, they will help you to carry out the installation of CFCC correctly. But on the construction site, the on-site service engineers cannot replace engineers and installation personnel to manage and supervise the construction, therefore, on-site service engineers are not responsible for the installation result of CFCC.

    The core is a new kind of composite that is cured in the mold by carbon fiber and glass fiber concentric circle layer after being impregnated in a thermosetting resin. The CFCC is produced by stranding formed wires outside of the core.
    PESCO CFCC Carbon Fiber Composite Core Conductor ACFR ACCC must prepare construction design, construction scheme, and technical communication before construction.
    When tension stringing, construction technology refers to the standard of SDJJS2.
    When it is used in the old line reconstruction, construction technology refers to the standard of GB 50233.

    Pulley's selection should accord to the requirement of the DL/T 685 standard, the material should adopt soft tenacity materials such as rubber or nylon.
    CFCC's tension-stringing construction should have the construction condition.

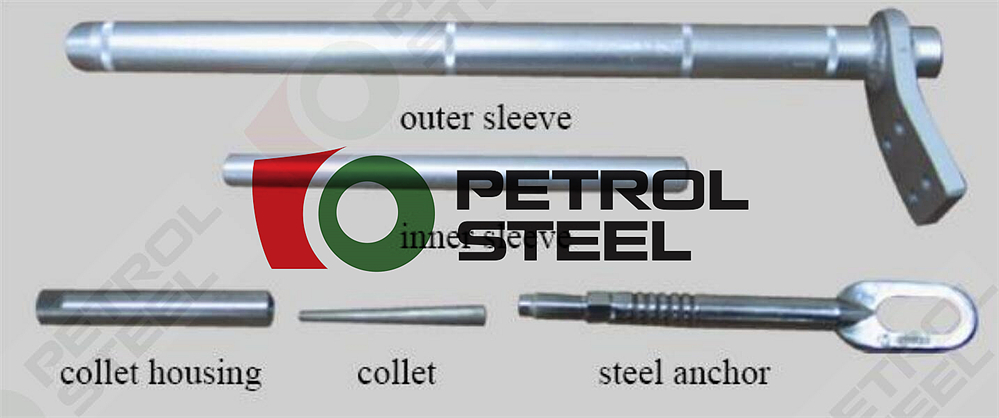

    Strain string should have adjustment fittings with a larger adjustment range. The supporting tower, and tension tower should be set up with holes for construction to meet the construction requirements.

    Construction preparation of PESCO CFCC Carbon Fiber Composite Core Conductor ACFR ACCC.
    Machines and tools preparation
    Tension machine selection should satisfy the corresponding tension requirement of CFCC.
    Tension stringing special stress instrument: traction net, special clamp for composite core, performed strain clamp. These instruments should meet features of CFCC, and match with the conductor, composite core, and major machines & tools.
    The diameter of the tension wheel should not be less than 50 times the diameter of the CFCC.

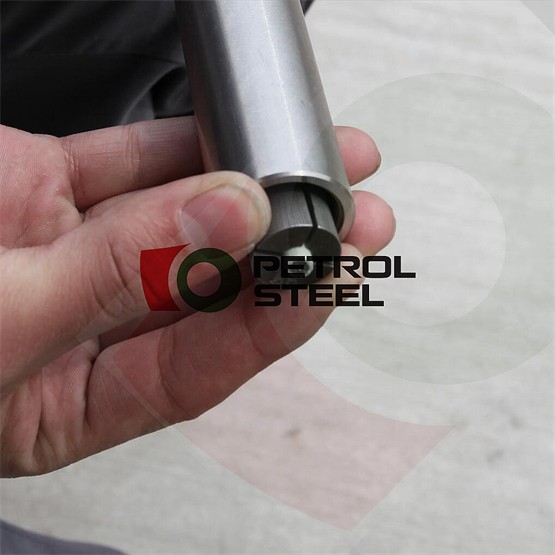

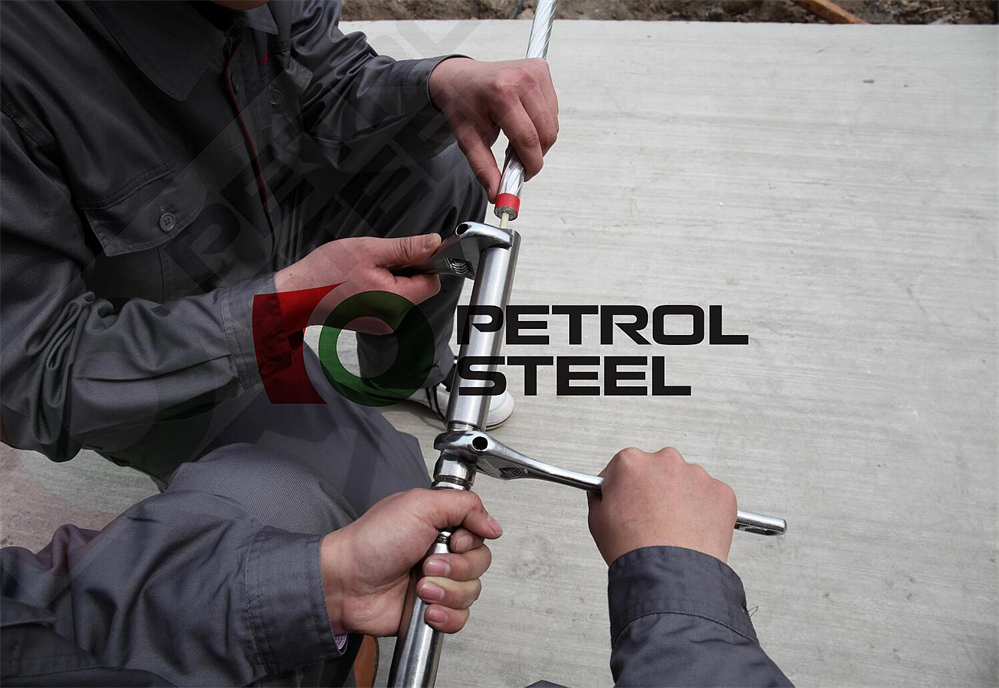

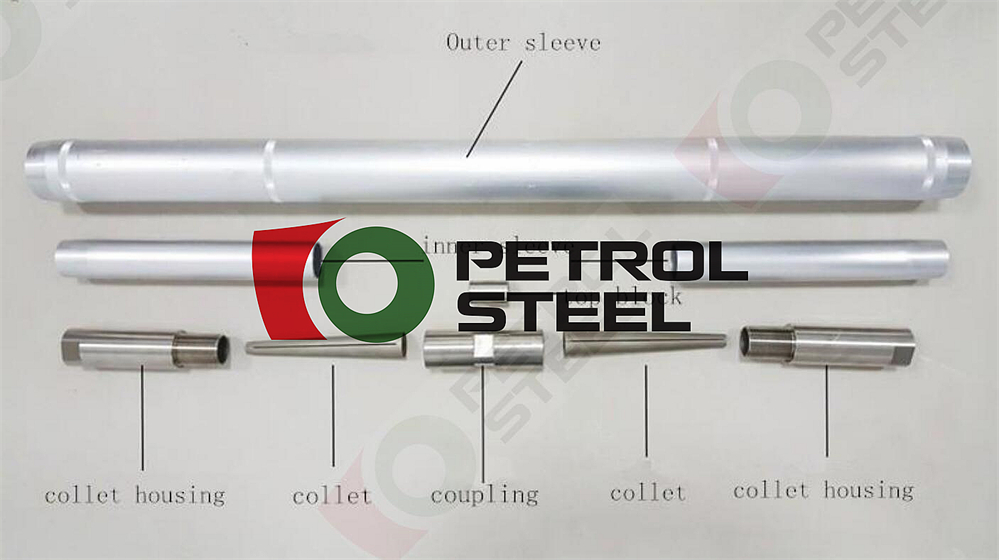

    Special clamp for CFCC: special clamp for PESCO CFCC Carbon Fiber Composite Core Conductor ACFR ACCC should be used during the construction. The different types of special clamps can not be replaced without verification.

    In the following methods, Anti-bending rotary connectors are used to meet the head and tail between two wheels of PESCO CFCC Carbon Fiber Composite Core Conductor ACFR ACCC..

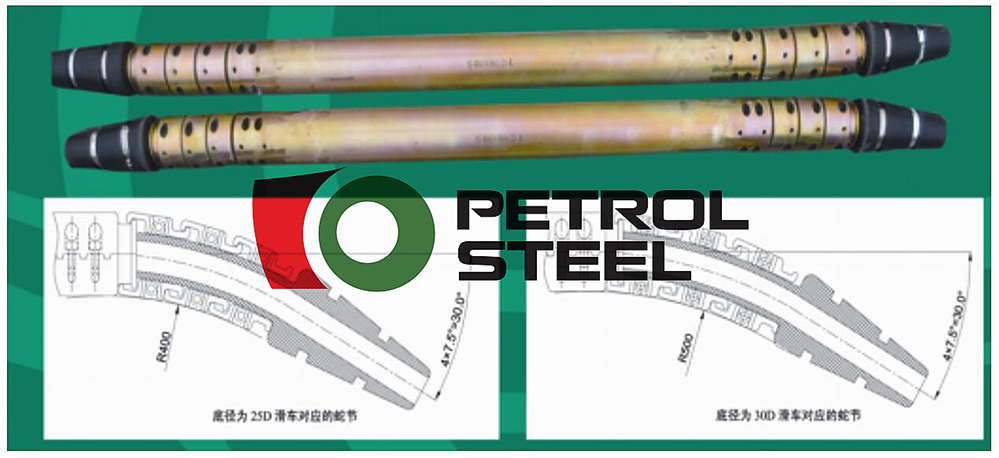

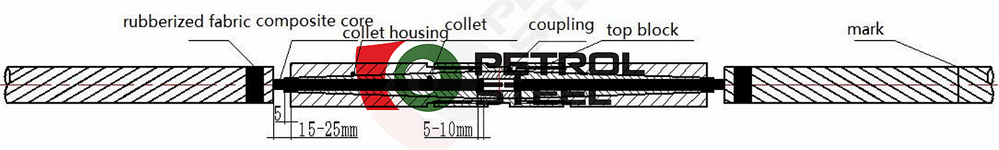

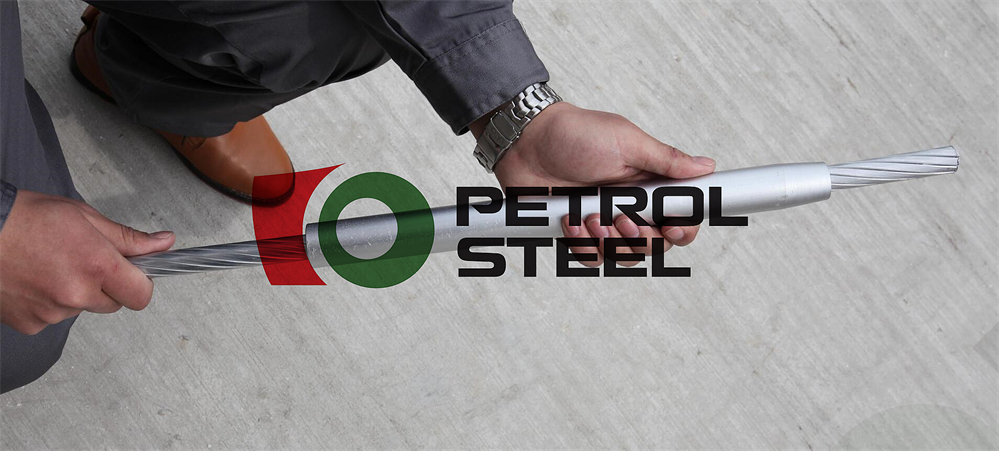

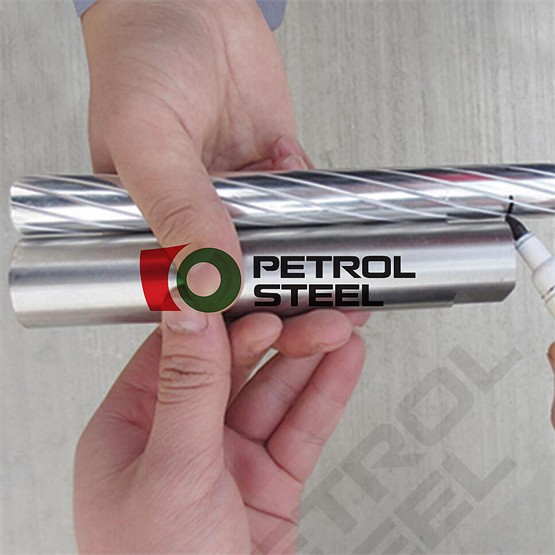

    Splicing sleeve protector: The spicing sleeve protector shall be used when the splicing needs to go through the pulley. The bending radius should be the same as that of the bottom of the pulley.
    Prefabricated drawing device:
    The lifting hook should have adequate bearing size. The bending radius of the lifting hooks should be not less than 1000mm, and the width of it should not be less than 299mm.
    Crossing construction preparation
    When the tension stringing cross-building, it requires that the touchpoint should be overhead. To ensure the safety of construction and spanned buildings.
    The dimension of the crossing shelf should consult SDJJS2 standards in the tension stringing.
    The touch part of the crossing shelf with PESCO CFCC Carbon Fiber Composite Core Conductor ACFR ACCC should be taken the protection measures.

    Pulley selection should comply with DL/T 685 Basic requirements, inspection specification, and determination methods of conductor stringing sheave and shall meet the following requirements.
    The diameter of the pulley groove's bottom should be greater than the CFCC diameter 30 times.
    The pulley groove's depth should be greater than the PESCO CFCC Carbon Fiber Composite Core Conductor ACFR ACCC. diameter l.25 times.
    The Pulley groove should use soft tenacity materials, such as rubber, and nylon. The friction coefficient of the pulley groove should be less than 1.015.
    Match with the tension stringing.
    The traction plate should match the pulley, its aim is to ensure the passing ability.
    The pulley should meet the maximum workload.
    The width of the pulley groove should be larger than the outer diameter of the spicing sleeve protector.

    When the envelope angle between the conductor and the pulley is more than 25°, it must use two pulleys to reduce the angle; when more than 60°, the conductor must not pass.
    Preparation before tension springing includes removing the obstacles in the channel, build-up the crossing shelf, choosing the tension and traction site, the tension and traction site leveling and road reparation, hanging suspension string for the support tower and pulley, hanging pulley for angle tower, hang pulley for the ground wire, etc.
    Tension stringing length mainly according to quality requirements and efficiency of stringing.
    Tension stringing length should be less than 6 km, and the number of pulleys should not be more than 12. When it is very difficult to choose a tension site, the number of pulley should not be more than 15. When across the particularly important buildings, such as railways, highways, or 110 kV and above power lines, etc., you should be appropriate to shorten the stringing length to ensure finish the stringing safely and quickly.

    Tension site selection principles
    The following situation should not be chosen as the tension site: It contains important crisscrosses or there are many crisscrosses in the tension site.
    The height difference between the adjacent tower suspension point and tension machine is large.

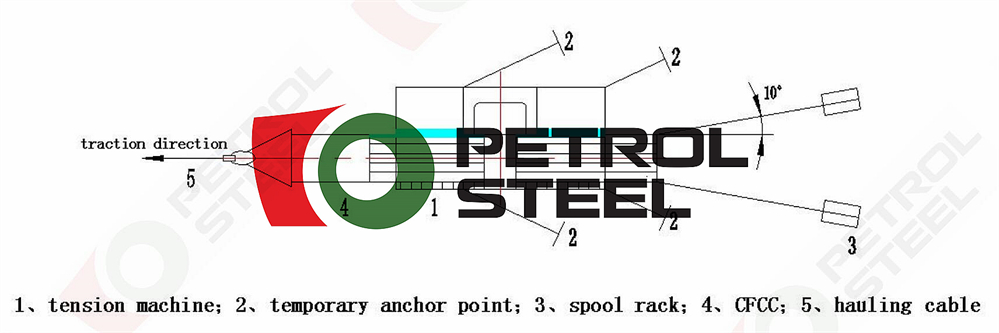

    The tension site layout should be paid attention to:
    Generally, the tension machine is layout in the centerline of the transmission line, and determining the stringing direction of the tension machine should be in the centerline.
    The forced direction of the Tension machine wire wheel must be perpendicular to its own axis.
    Tractors, tension machine, the rack must be anchored according to the operation instruction.
    The distance from the coil center to the tension machine should be less than 10 meters, but shall not be less than 7 meters. The angle between coil and tension machine wire wheel shall not be greater than 10°.

    For more recommendations and choices on the PESCO CFCC Carbon Fiber Composite Core Conductor ACFR ACCC, please send us the inquiry, you will get a quick reply soon.
    Headquarter: A-4F, Vantone Center, A6, Chaowai St., Chaoyang Dist., Beijing, China.
    Tel/Fax: +86 10 8599 9168
    Whatsapp/Wechat: 0086 159 0035 7871
    Email: sales@petrolsteel.com, jackywinn@foxmail.com
